3-axis CNC Router Engraver ChinaCNCzone 4030 (800 W)
id: 857222
3-axis CNC Router Engraver ChinaCNCzone 4030 (800 W)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1450.00
Notify
when in stock
when in stock
Overview

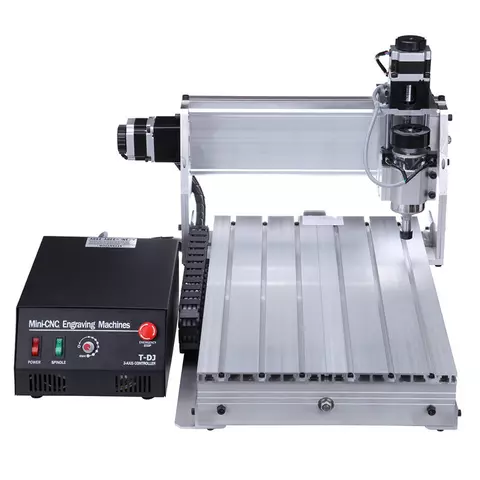

![3 axis CNC Router Engraver ChinaCNCzone 4030 800 W](https://i63.psgsm.net/gsm.com/p/857222/480/3-axis-cnc-router-engraver-chinacnczone-4030-800-w.jpg)
90 kg 220 V Warranty: 6 months
Designed for work on small areas. Suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc. 800 W water cooled spindle. Read more
Buy wholesale and save
Inform of price reduction
Description
CNC Router Engraver ChinaCNCzone 4030 is a powerful (800 W) 3-axis device which is designed for work on small areas. It is suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc.
Features
- Compact size
- 800 W water cooled spindle
- High precision stepping motor for more precise engraving
- Simple installation and operation
- Precision 1204 ballscrew
Technical Specifications
Effective working travel | 390 × 280 × 55 mm |
Max. workpiece dimensions | 390 × 280 <70 mm |
Work table dimensions | 530 × 320 mm |
Material thickness | < 70 mm |
Stepping motor type | 57 two-phase 2.5 A, super low-noise |
Spindle speed | 1000 ~ 8000 RPM |
Engraving accuracy | > 0.05 mm |
Operating voltage | AC 110/220 V |
Size | 136 × 116 × 92 mm |
Weight | 27 kg |
Package Contents
- CNC Router Engraver 4030 – 1 pc.
- Control box – 1 pc.
- Axis motors – 3 pcs.
- Power cable – 1 pc.
- Tool box and tools – 1 pc.
- Software - 1 pc.
- User manual - 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
