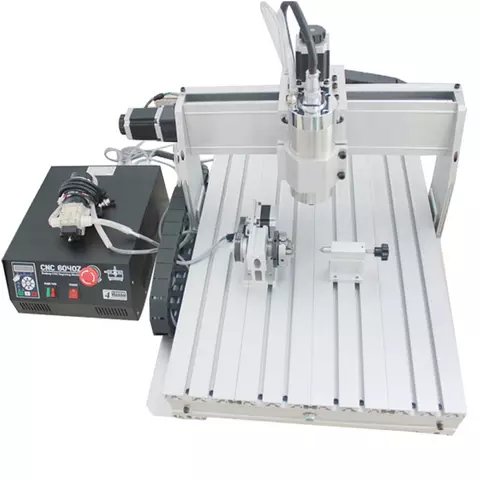

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W)

Name: 4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W)
Brand: ChinaCNCzone
SKU: 857204
Price: 1865.00 USD
Availability: OutOfStock

id: 857204

Overview

Description

Specifications

Video

Delivery

Payment

Warranty

USD 1865.00

Overview

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W)

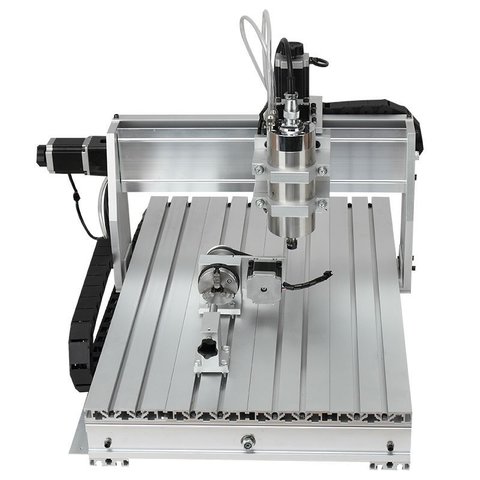

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W) Preview 1

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W) Preview 2

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W) Preview 3

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W) Preview 4

Video

4-axis CNC Router Engraver ChinaCNCzone 6040 (1500 W) Preview 5

Video

95 kg 220 V Warranty: 6 months

Designed for work on large areas. Suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc. 1500 W water cooled spindle. Read more

USD 1865.00

Buy wholesale and save

USD 1865.00

Impossible to estimate the shipping cost

Description

CNC Router Engraver ChinaCNCzone 6040 is a powerful (1500 W) 4-axis device which is designed for use by professional engineers. It is suitable for various materials, such as wood, PMMA or other plastic, MDF board, PVC, plywood, etc.

Features

1500 W water cooled spindle
High precision stepping motor for more precise engraving
Simple installation and operation
Ballscrew Z-axis

Video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Effective working travel	580 × 400 × 75 mm
Max. workpiece dimensions	580 × 400 < 90 mm
Work table dimensions	750 × 480 mm
Material thickness	< 100 mm
Stepping motor type	57 two-phase 3 A, super low-noise
Spindle speed	1000-24000 RPM
Engraving accuracy	> 0.04 mm
Operating voltage	AC 110/220 V
Size	136 × 116 × 92 mm
Weight	55 kg

Package Contents

CNC Router Engraver 6040 – 1 pc.
Control box – 1 pc.
Axis motors – 3 pcs.
1.5 kW inverter – 1 pc.
Power cable – 1 pc.
Tool box and tools – 1 pc.
Connection wires - 2 pcs.
Software - 1 pc.
User manual - 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
