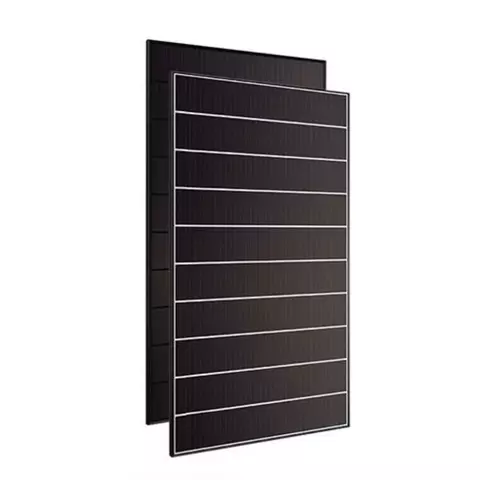

550W TFL Solar Panel
id: 917093
550W TFL Solar Panel
Overview
Description
Delivery
Payment
Warranty
Price coming soon
Overview
New
27 kg Warranty: 12 months
This 550W solar panel is intended for solar power systems. IP68, 2239×1042×35 mm Read more
Price coming soon
Description
Electric Specifications
| Max Power | 550W |
| Open Circuit Voltage | 48.077V |
| Short Circuit Current | 14.672A |
| Max Power Voltage | 39.49V |
| Max Power Current | 13.942A |
| Module Efficiency | 21.66% |
Mechanical Specifications
| Dimensions | 2239×1042×35mm (L×W×H) |
| Weight | 27.4kg |
| Type | mono |
| Front Glass | White toughened safety glass, 3.2mm |
| Cells | 210×210 PERC solar cells |
| Frame | Anodized aluminum profile |
| Junction Box | IP68, TUV, two diodes |
| Cable | Length 1200mm, 1×4mm² |
| Connector | Compatible with MC4 |
| Temperature Range | –40 ~+85°C |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
