Overview
Video
Video
0.3 kg Warranty: 24 months
Measures DC/AC voltage, DC current and resistance. Diode, continuity and non-contact voltage (NCV) testing. Manual range selection. Read more
Price coming soon
Description

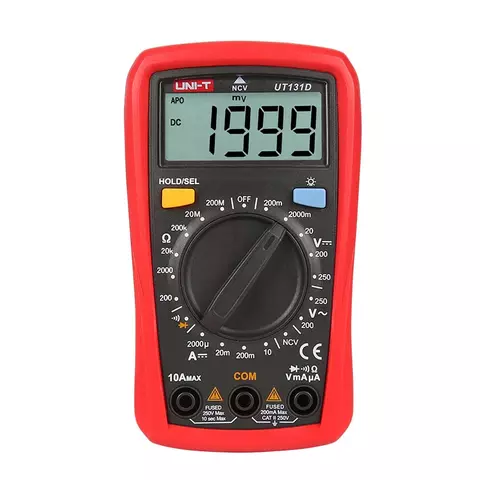

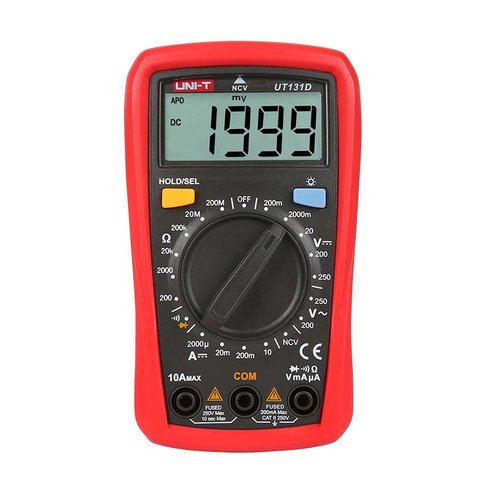

UNI-T UT131D is a pocket digital multimeter. It is used for DC/AC voltage, DC current and resistance measuring, as well as diode, continuity and non-contact voltage (NCV) testing. Its innovative industrial design ensures that the multimeter can withstand 2 meters drop.
Features
- Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
- Testing & measurement functions:
- DC/AC voltage;
- DC current;
- resistance;
- diode testing;
- continuity;
- NCV.
- Comfortable protective cover with test lead holder.
- 2 m drop proof.
- Loud buzzer sound.
- Ergonomic design.
- Auto power off.
- Auto backlight off.
- Manual range selection.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 200 mV ~ 250 V | ±(0.5%＋2) |
| AC voltage | 200 V ~ 250 V | ±(1.2%+10) |
| DC current | 2000 μA ~ 10 A | ±(1%+2) |
| Resistance | 200 Ω ~ 200 MΩ | ±(0.8%+2) |
| General Specifications | ||
| Power | 1.5 V battery (R03) × 2 | |
| Display | 2000-count LCD, 66 × 51 mm | |
| Dimensions | 131 × 95 × 58 mm | |
| Weight | 300 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT131D User Manual.
Package Contents
- Pocket Digital Multimeter UNI-T UT131D — 1 pc.
- Battery — 2 pcs.
- Test leads — 2 pcs.
- User Manual — 1 ps.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
