Overview
0.5 kg Warranty: 12 months
High-performance dual-channel waveform generator featuring a 70 MHz frequency output and a 300 MSa/s sampling rate. Supports 5 standard and 150 arbitrary waveforms Read more
Price coming soon
Description

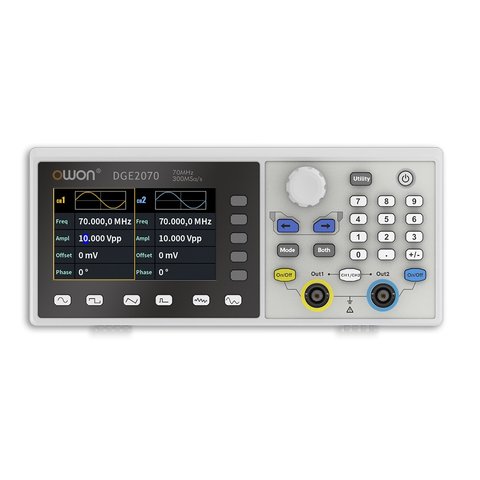

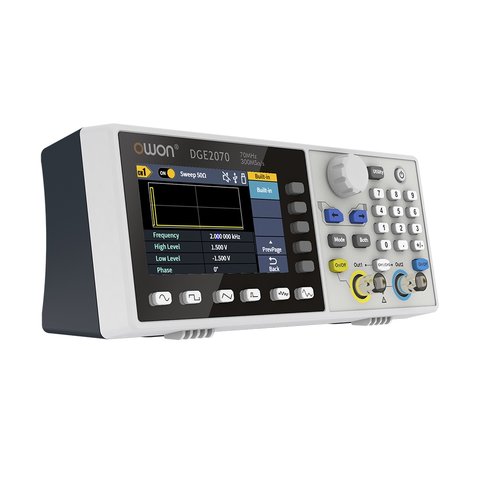

OWON DGE2070 is a dual-channel signal generator capable of producing waveforms up to 70 MHz with a sampling rate of 300 MSa/s. It offers a wide range of modulation functions, including AM, FM, PM, FSK, Sweep, and Burst. The generator supports 5 standard waveforms (sine, square, pulse, triangle, noise) and 150 user-defined arbitrary waveforms. For ease of use, the instrument is equipped with a 3.6-inch LCD display and is compatible with the SCPI standard for seamless integration with other instruments and software.
Features
- Maximum output frequency of 70 MHz
- Sampling rate of 300 MSa/s
- 14 bits vertical resolution
- 8K arbitary waveform length
- Supports 5 standard waveforms (sine, square, pulse, triangle, noise) and 150 user-defined arbitrary waveforms
- Offers various modulation functions including AM, FM, PM, FSK, Sweep, and Burst
- Equipped with a 3.6-inch LCD display for easy operation and monitoring
- SCPI compatibility, integrates seamlessly with other instruments and software
Technical Specifications
| Channel | 2 |
| Frequency Output | 70 MHz |
| Sample Rate | 300 MSa/s |
| Vertical Resolution | 14 bits |
| Waveform | |
|---|---|
| Standard Waveform | sine, square, pulse, ramp, and noise |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
| Frequency | |
| Sine | 1 μHz - 70 MHz |
| Square | 1 μHz - 20 MHz |
| Pulse | 1 μHz - 20 MHz |
| Ramp | 1 μHz - 2 MHz |
| Noise | 20 MHz (-3dB, typical) |
| Arbitrary Waveform | 1 μHz - 10 MHz |
| Frequency Resolution | 1 μHz or 7 significant figures |
| Frequency Stability | ±30 ppm at 0±40℃ |
| Frequency Aging Rate | ±30 ppm per year |
| Arbitrary | |
| Waveform Length | 2 - 8K points |
| Sample Rate | 300 Ma/s |
| Amplitude | |
| Into 50Ω Load | 1 mVpp - 10 Vpp (≤10 MHz) 1 mVpp - 5 Vpp (≤70 MHz) |
| DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
| DC Offset Resolution | 1 mV or 4 digits |
| Load Impedance | 50 Ω (typical) |
| DC Offset Accuracy | ±(1% of |setting| + 1 mV + amplitude Vpp × 0.5%) |
| Modulation | |
| Type | AM, FM, PM, FSK, Sweep, Burst |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Sweep | |
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave (except DC) |
| Minimum/Maximum Starting Frequency | 2 mHz (minimum) / maximum frequency of corresponding carrier |
| Minimum/Maximum Termination Frequency | 2 mHz (minimum) / maximum frequency of corresponding carrier |
| Trigger Source | internal, manual |
| Burst | |
| Waveform | Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC) |
| Types | N Cycle |
| Trigger Source | internal, manual |
| Carrier Frequency | 1 μHz ≤ offset ≤ maximum frequency of corresponding carrier /2 |
| General Specifications | |
| Display | 3.6-inch TFT LCD with resolution 480 × 272 |
| Communication Interface | USB Device |
| Dimensions (W×H×D) | 200 mm × 68.5 mm × 74.5 mm |
| Weight (without package) | 0.5 kg |
User Manual
Download OWON DGE2070 user manual.
Package Contents
- Arbitrary Waveform Generator OWON DGE2070 — 1 pc.
- Power Adapter — 1 pc.
- Q9 Cable — 1 pc.
- Quick Guide — 1 pc.
- USB to DC Cable — 1 pc.
- BNC to Alligator Clip — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
