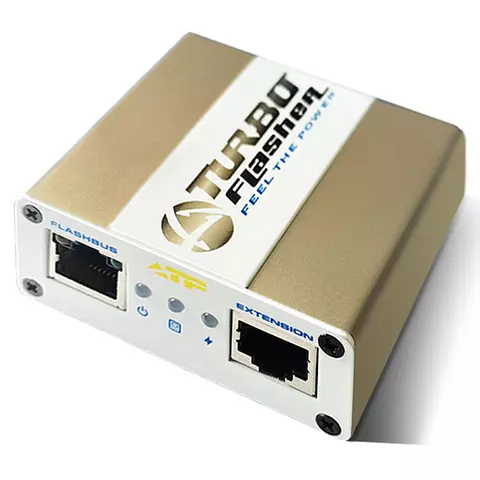

ATF Gold Box

ATF Team launched a very special limited edition 5-Year Anniversary ATF GOLD BOX.

ATF GOLD BOX Unique Visual Features:

• High quality gold-plated aluminum case (fingerprint proof)
• Double-coated white front and back panels (stain proof)
• Limited Edition white metallic sticker label

ATF GOLD BOX Special Activations Included:

• 39 ATF JTAG Credits : ATF JTAG Activation
• 49 ATF Network Credits : ATF Network Activation

ATF GOLD BOX Features:

• It's GOLD
• USB 2.0 HS 480mbps
• Fastest JTAG read/write speed for Qualcomm CPUs (30 MHz)
• Built-in VBATT power supply for powering phones during JTAG procedures (4.20V on RJ-45 PIN 1)
• Fastest eMMC read/write speed for any CPU for 1-BIT @ SDR 15 MHz
• Built-in eMMC single power supply (3.00V on RJ-45 PIN 2)
• First in the WORLD eMMC pinout finder for supported CPUs
• Built-in micro SD card slot for:
  • Multi-lingual SD password brute force (ATF is still the ONLY box which can do this)
  • SD card "Force Format"
  • Samsung SDC unbrick creator using official Samsung TAR.MD5 BL flash files
  • SD card low level read/write (Operating System bypass)
• SPI ISP chip programming with built-in power supply
• Fastest Nokia FBUS flasher

Additional Features:

ATF Professional eMMC Tool 3.0 (APeT 3.0)

• Permanently removes WP bit on all Samsung brand eMMC (first in the world):
  • Fixes "Unable to find a bootable option" on Nokia / Microsoft Lumia phones (WITHOUT IMEI AND SIMLOCK DATA LOSS)
  • Fixes "eMMC is read only, you cannot update your System" on Huawei phones (WITHOUT IMEI AND SIMLOCK DATA LOSS)
• Field firmware update on selected Samsung brand eMMC:
  • Fully repairs eMMC firmware bugs such as:
    • No name eMMC "000000" bug
    • Read/Write disabled bug
    • eMMC firmware Erased/Corrupted bug

Currently supported Samsung eMMC models * for Field Firmware Update (FFU):

DO NOT cross flash wrong eMMC model with non-matching part numbers!
This would kill your eMMC 100% and it will become useless and dead.

BGA-169/153

BGA-162

• Write official Samsung TAR.MD5 files via eMMC connection
  • Now you can Repair Boot of any new Samsung phone based on Qualcomm, Exynos, Broadcom, Marvell and Spreadtrum CPUs by just using official Samsung BL flash files.
• Improved eMMC Test Point finder 1.5
  • Now supports newest Qualcomm APQ8084 phones (SM-N910F, N9109W, N910A, N915D, N9108V, N9100, G901F)

ATF Professional eMMC Tool 3.0 - no more waiting time for other JTAG/eMMC boxes to support your new Samsung phone.

Example: You should do the following with unsupported new phone for Boot Repair procedure:

1. Disassemble the phone and locate the eMMC pinout using ATF eMMC Test Point finder
2. Download official Samsung TAR.MD5 BL flash file or ALL-IN-ONE flash file from the Internet
3. Write this flash file via eMMC connection using ATF eMMC tool
4. Phone Boot is repaired!

Advance Turbo Flasher Gold Box (ATF Box) Package Content:

• Advance Turbo Flasher Gold Box (ATF Box) – 1 pc.

Due to the onrush of technology and efforts to meet every customer's demands, the supplier retains the right to change some positions in the list of cables and accessories coming together with the product. Therefore, the package content presented above is rather tentative. More details on the matter can be obtained from our sales managers.

First Start

After you receive the box, you have to register it.

Please download the latest version of ATF_Full_Installer

Connect the box to your PC and install the drivers, you can find them in the folder with installed software ...\AdvanceBox Turbo Flasher\Driver\ATF_NEW_DRIVERS

If you installed the box correctly, then your PC should recognize it as AdvanceBox Programming Port + AdvanceBox Turbo Flasher

Turn your antivirus and firewall off and run AdvanceBox.exe

Open "Product Support" section in the software, choose "Box Tools"

Add on registration form your personal details, select "Country - Worldwide", "Reseller - GSMServer", as shown on the screenshot and press "Activate Box"

Now your box is registered and you will be able to add already pre-activated JTAG and ATF Network Activations.

To add JTAG activation please follow this manual.

To add ATF Network activation - open "ATF Network Section" and press "Login to your ATF Network Account"

Now your box is completely activated.

If you have any questions please write us to techsupport@gsmserver.com

*The developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied to some supported models, due to differences of hardware/software versions. You can find a complete list of supported models on the official product page or the GSM forum.
