Battery Resistance Tester Yaorea YR1035C5
id: 898658
Battery Resistance Tester Yaorea YR1035C5
Overview
Description
Delivery
Payment
Warranty
USD 79.00
Overview
0.5 kg Warranty: 6 months
The device measures the internal resistance of batteries or battery assemblies of any type (up to 100 V) using 1 kHz alternating current. Read more
USD 79.00
Description

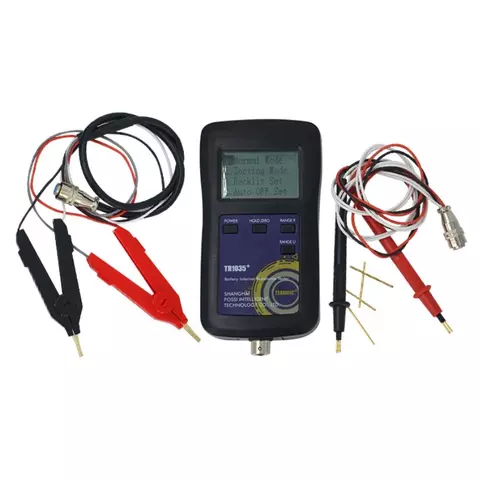

YR1035C5 is an ultra-precise device that tests batteries by measuring the internal resistance of any type of battery or battery assembly (up to 100 V) using 1 kHz AC.
Features
- Backlit LCD.
- Micro USB port for charging the built-in rechargeable battery.
- Manual/automatic range selection.
Technical Specifications
| Internal Resistance Measurement (0.01 mΩ to 200 Ω) |
||
|---|---|---|
| Range | Resolution | Accuracy |
| up to 20 mΩ | 0.01 mΩ | 0.7%+7 (when ZR function is enabled) |
| up to 200 mΩ | 0.1 mΩ | 0.5%+5 |
| up to 2 Ω | 0.001 Ω | 0.5%+5 |
| up to 20 Ω | 0.01 Ω | 0.5%+5 |
| up to 200 Ω | 0.1Ω | 0.6%+5 |
| Voltage Measurement (0.00001 V to 99.999 V) |
||
| Range | Resolution | Accuracy (% reading + % range) |
| up to 1 V | 0.00001 V | 0.35+0.015 |
| up to 10 V | 0.0001 V | 0.30+0.010 |
| up to 100 V | 0.001 V | 0.30+0.015 |
Package Contents
- Battery Tester YR1035C5 — 1 pc.
- Probe Test Line — 1 set
- Kelvin Clip — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
