Bench Digital Multimeter RIGOL DM3068
id: 840849
Bench Digital Multimeter RIGOL DM3068
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 882.00
Notify
when in stock
when in stock
Overview

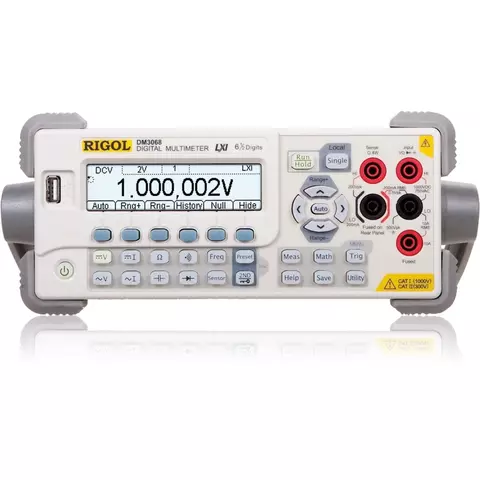

![Bench Digital Multimeter RIGOL DM3068](https://i56.psgsm.net/gsm.com/p/840849/480/bench-digital-multimeter-rigol-dm3068.jpg)
8.5 kg 110, 220 V Warranty: 36 months
Reliable, cost effective, DMM for measuring AC/DC voltage, AC/DC current, resistance (2 and 4 wire), capacitance, frequency, temperature, and performing diode test, Read more
Buy wholesale and save
Inform of price reduction
You may also like
Description
RIGOL DM3068 is a bench digital multimeter which measures AC/DC current and voltage, resistance (2 and 4 wire), capacitance, frequency, temperature, and performs continuity and diode test.
Features
- True 6 ½ digit resolution
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature
- continuity test
- diode test
- True RMS measurements
- More than 8.000 measurements per second
- Math function
- Statistic function
- Support multiple temperature sensors
- Histogram display
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Display | LCD display, 256 × 64 mm | |
DC voltage | Range | 200 mV - 1000 V |
Accuracy | 0.0035+0.0005 | |
AC voltage | Range | 200 mV - 750 V |
Accuracy | 0.06+0.03 | |
DC current | Range | 200 µA - 10 A |
Accuracy | 0.050+0.005 | |
AC current | Range | 20 mA - 10 A |
Accuracy | 0.10+0.04 | |
Resistance (2-wire and 4-wire) | Range | 200 Ω - 100 MΩ |
Accuracy | 0.010+0.001 | |
Capacitance | Range | 2 nF - 10000 µF |
Accuracy | 1 + 0.5 | |
Frequency | Range | 43 Hz - 1 MHz / 1 µsec – 0.33 sec |
Accuracy | 0.007 | |
Interfaces | GPIB, LAN, USB 2.0 device and host, RS-232C | |
Power | AC 100 V - 120 V, 45 Hz - 440 Hz AC 200 V - 240 V, 45 Hz - 66 Hz |
|
Dimensions (H × W × D) | 107 × 231 × 290 mm | |
Weight | 3.2 kg |
Package Contents
- RIGOL DM3068 multimeter (1 pc.)
- Test leads (1 pair)
- USB interface cable (1 pc.)
- Spare fuse (1 set)
- Power cord (1 pc.)
- Alligator clips (1 pair)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
