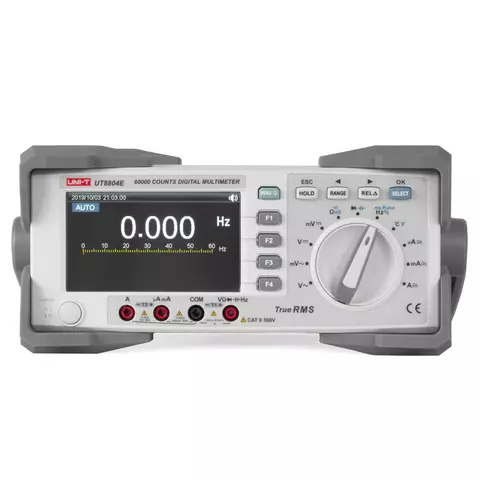

Benchtop Digital Multimeter UNI-T UT8804E
id: 886901
Benchtop Digital Multimeter UNI-T UT8804E
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
5.5 kg Warranty: 24 months
AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, temperature, conductance measurementes and diode, transistor and continuity tests, SCR thyristor test. Read more
Price coming soon
You may also like
Description
UNI-T UT8804E True RMS Benchtop Digital Multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurementes and diode, transistor and continuity tests. Having a large EBTN LCD display and a USB interface, it features thyristor testing mode, overload protection for all ranges and special appearance design. It is an ideal tool for electricians, production QA, maintenance, research, and education.
Features
- True RMS
- Auto/manual range
- Data hold
- MAX/MIN mode
- 100kHz frequency response
- AC+DC measurement
- Low pass filter
- dBV/dBm measurement
- Diode/transistor
- SCR thyristor test
- Continuity buzzer
- Dual-channel temperature measurement
- Recording period up to 100 days
- USB interface
- 60000 count EBTN LCD screen
- Auto power off
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 1000 V | ±(0.025%+5) |
| AC voltage | 1000 V (45 Hz~100 kHz) | ±(0.3%+30) |
| DC current | 10 A | ±(0.08%+10) |
| AC current | 10 A (45 Hz~10 kHz) | ±(0.6%+20) |
| Resistance | 60 MΩ | ±(0.05%+2) |
| Capacitance | 60 mF | ±(2%+10) |
| Conductance | 60 nS | ±(2%+5) |
| Frequency | 60 MHz | ±(0.01%+5) |
| Duty cycle | 10%-90% (10Hz~2kHz) | ±(1.2%+30) |
| Temperature | -40℃~1000℃ | ±(1%+30) |
| -40℉~1832℉ | ±(1.5%+50) | |
| General Characteristics | ||
| Power Supply | 100 V / 120 V / 220 V / 240 V ±10%, 47 Hz~63 Hz | |
| Display | EBTN LCD | |
| Size | 265 × 110 × 320 mm | |
| Weight | 3 kg | |
User Manual
Download UNI-T UT8804E User Manual.
Sofware
Download UNI-T UT8804E Sofware.
Package Contents
- UNI-T UT8804E Benchtop Digital Multimeter — 1 pc.
- Test leads — 1 set
- USB interface cable — 1 pc.
- Power cord — 1 pc.
- K-type temperature probe — 2 pcs.
- Adapter UT-S04A — 1 pc.
- Alligator clips — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
