Overview
![Binocular Microscope XTX series LBX](https://i20.psgsm.net/gsm.com/p/810800/480/binocular-microscope-xtx-series-lbx.jpg)
9.9 kg 220 V Warranty: 6 months
Sharp stereo erect image over a wide field of view. Read more
Buy wholesale and save
Description

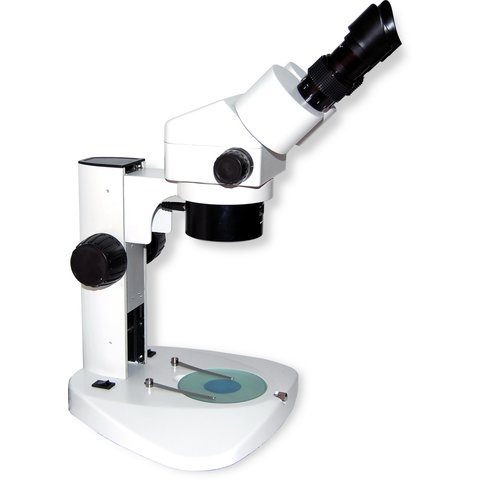

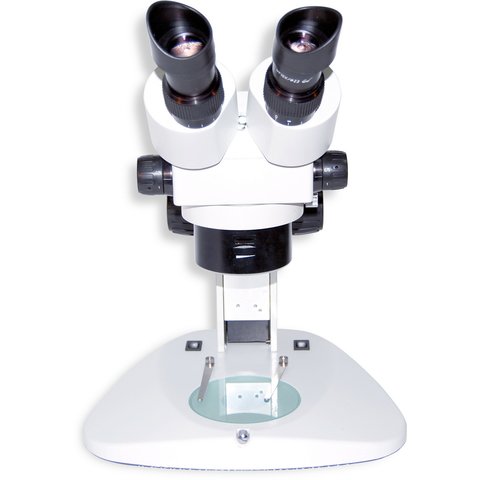

LBX Binocular Microscope Features
- Sharp stereo erect image over a wide field view.
- 45° inclined and rotatable binocular head mounted on curved arm stand.
- Binocular head rotating angel: 360°
- Illumination: inside incident light, brightness adjustable.
- Electric apparatus has CE approval.
- Power supply 110 V/60 Hz or 220 V/50 Hz
LBX Binocular Microscope Technical Specification
- Objective zoom range: 0.75x-5x
- Eyepiece: SWF10xφ23
- Zoom ratio 1:6.7
- Total magnification: 7.5x-50x
- Working distance: 113 mm
- Focusing range: 80 mm
- Visual field: Ø33 mm - Ø 5 mm
- Lux of incident LED light: 6800 lux
- Lux of transmitted LED light: 2100 lux
- Interpupillary distance: 55-75 mm.
- Left ocular-tube diopter adjustment +/-5dp.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
