Cable for RGB Low-End car video interface connection in Infiniti FX / QX and Nissan Pathfinder/Altima.
Availability in stock:
HK
ID: 855105 0.1 kg

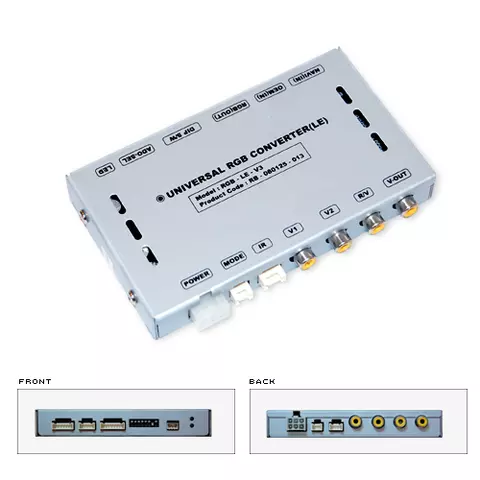

Car Video Interface for Infiniti / Nissan
id: 811848
Car Video Interface for Infiniti / Nissan
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 180.00
Overview
0.61 kg Warranty: 12 months
Car video interface for Infiniti FX35 /FX45/QX and Nissan Pathfinder/ Altima allows you to connect external video sources, such as DVD player, additional navigation box, TV-receiver, reverse camera, to OEM car monitor. Read more
USD 180.00
Buy wholesale and save
You may also like
Description
Car video interface for Infiniti FX35 /FX45/QX and Nissan Pathfinder/ Altima allows you to connect external video sources, such as DVD player, additional navigation box, TV receiver, rear view camera, to OEM car monitor.
Technical Specifications
- Inputs: (multi video interface)
- CVBS (for external video sources) × 2
- CVBS input for rear view camera
- Analog RGB input (for OEM monitor) x 1
- Analog RGB input (for additional navigation system) x 1 (optional)
- Outputs
- CVBS output (video output for headrest monitor) x 1
- Audio select output x 1
- RGB output x 1
- Power
- Input power: 8 V DC ~ 18 V DC
- Max. consumed power: 5 W
- Input mode switching
- Video input disable: possible to skip each input source by adjusting DIP switches
- Input mode switching by remote controller or remote mode switch button
- Rear view camera mode: image form rear view camera is displayed only when the vehicle is reversing (it impossible to switch to the rear mode with remote switch button or remote controller)
- Dimensions: 131 mm × 75 mm × 21 mm
Compatibility
| Car brand | Model | Model years | |
|---|---|---|---|
| From | To | ||
| Infiniti | FX35 | 2004 | 2007 |
| FX45 | |||
| QX56 | 2004 | - | |
| Nissan | Pathfinder | 2005 | - |
| Altima | |||
Manual
Package Content
- Car video interface main module
- Remote controller
- Sub-board
- Cable set:
- Power cable
- Cable with remote mode switch button
- RGB (Out) cable
- RGB OEM cable
- Audio Select cable
- RGB NAVI cable
- IR cable for remote controller
Package includes all elements needed for installation:
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
