DC Power Supply UNI-T UTP3315TFL-II
id: 888681
DC Power Supply UNI-T UTP3315TFL-II
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 68.85
Overview
4 kg Warranty: 24 months
A single-channel power supply provides DC voltage power supply in a range of 0 to 30 V, and current in a range of 0 to 5 A. Read more
USD 68.85
Description

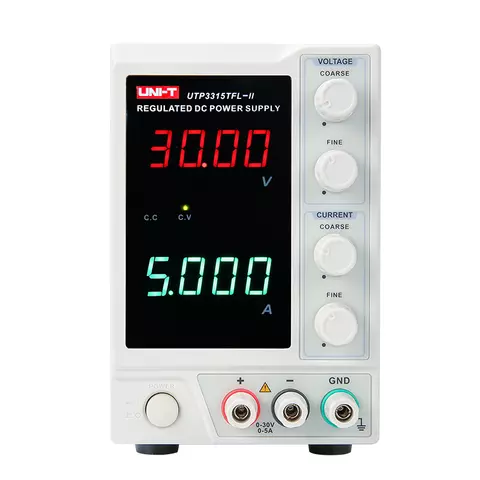

UNI-T UTP3315TFL-II is a single-channel transformer DC power supply with an LED display. UNI-T UTP3315TFL-II ensures the power supply of electronic devices and circuits with DC voltage in a range of 0 to 30 V and with the current in a range of 0 to 5 A.
Features
- High-quality and stable device.
- Data display: LED indicators.
- Short-circuit protection, overload protection, reverse polarity protection etc.
- Adjustability of the required current value.
- Automatic conversion of voltage and current stabilization.
Technical Specifications
| Output voltage | 0-30 V |
| Output current | 0-5 A |
| Output power | 150 W |
| Load regulation | CV: ≤0.01%+5 mV, CC: ≤0.1%+10 mA |
| Accuracy (25°C±5°C) | Voltage: <0.5%+20 mV Current: <0.5%+10 mA |
| Ripple and noise | ≤2 mVrms |
| Output regulation resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
| Display | LCD |
| Power | input voltage: 110 V/220 V±5% AC; frequency: 50 Hz/60 Hz |
| Dimensions | 105 mm × 165 mm × 249 mm |
| Weight | 4 kg |
User Manual
Download UNI-T UTP3315TFL-II user manual.
Package Contents
- DC Power Supply UNI-T UTP3315TFL-II — 1 pc.
- Power Cord — 1 pc.
- Output Cables — 1 set
- User Manual — 1 pc.
- Spare fuse 2.5A, 250V — 1 pc.
- Safety instructions — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
| Maximum power |
|
