Digital Clamp Meter Accta AT-600A
id: 891578
Digital Clamp Meter Accta AT-600A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
New
0.6 kg Warranty: 12 months
True RMS digital clamp meter designed to measure AC/DC voltage, AC current, resistance, capacitance, NCV, and to perform diode and continuity testing. Read more
Discontinued
Description
Accta AT-600A is a digital True RMS clamp meter that can be used to measure AC/DC voltage, AC current, resistance, capacitance, and to perform diode and continuity testing. The device is equipped with a large 1999 count backlit LCD.
Features
- Measurement functions:
- True RMS;
- DC/AC voltage;
- resistance;
- AC current;
- capacitance;
- non-contact voltage testing (NCV);
- diode testing;
- continuity testing.
- Data hold ("HOLD/BL").
- Automatic power off after 15 minutes of inactivity
- LCD with backlight.
- "SELECT" button used to select the desired function.
- Maximum / minimum measurement value fixation ("MAX/MIN").
- Low battery indication.
- Over limit indication ("OL").
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,8% + 10) |
| 600 V | ±(1,0% + 10) | |
| AC Voltage | 2 V / 20 V / 200 V | ±(0,8% + 10) |
| 600 V | ±(1,0% + 10) | |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ±(1,0% + 5) |
| 20 MΩ | ±(1,2% + 10) | |
| AC Current | 2 A / 20 A / 200 A / 600 A | ±(2,5% + 8) |
| Capacitance | 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 1000 μF | ±(5,0% + 8) |
| General Specifications | ||
| Display | 1999 digit LCD | |
| Diameter | 32 mm | |
| Sampling rate | 3 times/s | |
| Working temperature | 0..40°C at a humidity no more than 80% | |
| Power | AAA battery 1.5 V × 2 pcs. | |
| Dimensions | 193 × 73 × 37 mm | |
| Weight | 220 g (with batteries) | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

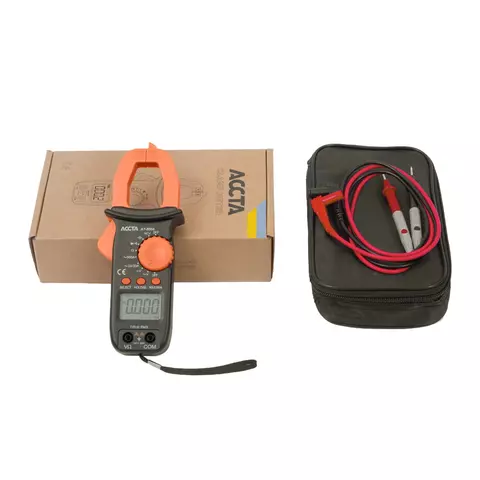

Package Contents
- Digital Clamp Meter Accta AT-600A — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
