The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Availability in stock:
HK
ID: 898893 0.85 kg
Digital Clamp Meter Accta AT-600C
id: 891579
Digital Clamp Meter Accta AT-600C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 33.39
Overview
Video
Video
Video
New
0.6 kg
Availability in stock:
HK
Warranty: 12 months This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing. Read more
USD 33.39
You may also like
Description
Accta AT-600C is a digital True RMS clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, NCV, and perform diode and continuity testing. The device is equipped with a large 3999 digit backlit LCD.
Features
- Measurement functions:
- True RMS;
- DC/AC voltage;
- resistance;
- AC/DC current;
- capacitance;
- frequency;
- non-contact voltage test (NCV);
- diode testing;
- continuity testing.
- Data hold ("HOLD/BL").
- Automatic power off after 15 minutes of inactivity.
- Relative measurements mode ("REL").
- Large LCD with backlight.
- "SELECT" button used to select the desired function.
- Low battery indication.
- Over limit indication ("OL").
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 400 mV / 4 V / 40 V / 400 V | ±(0,5% + 4) |
| 600 V | ±(1,0% + 6) | |
| AC Voltage | 4 V / 40 V / 400 V | ±(0,8% + 10) |
| 600 V | ±(1,0% + 10) | |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ | ±(1,0% + 5) |
| 40 MΩ | ±(1,2% + 10) | |
| AC Current | 40 A / 600 A | ±(2,5% + 8) |
| DC Current | 40 A / 400 A / 600 A | ±(4,0% + 10) |
| Frequency | 0 ～ 10 MHz | ±(0,3% + 3) |
| Capacitance | 4 nF / 40 nF / 400 nF / 4 μF / 40 μF / 1000 μF | ±(5,0% + 8) |
| General Specifications | ||
| Display | 3999 digit, LCD | |
| Diameter | 32 mm | |
| Sampling rate | 3 times/s | |
| Working temperature | 0..40°C at a humidity no more than 80% | |
| Power | AAA battery 1.5 V × 2 pcs. | |
| Dimensions | 193 × 73 × 37 mm | |
| Weight | 220 g (with batteries) | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

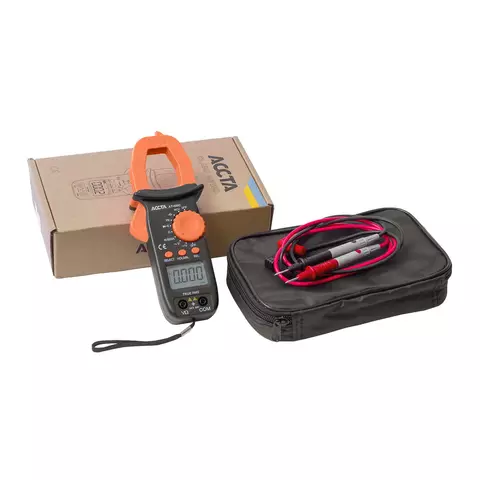

Package Contents
- Digital Clamp Meter Accta AT-600C — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Digit Capacity |
|
| Type |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Frequency |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Continuity test |
|
| DC |
|
| AC |
|
| Three-phase voltage measurement |
|
| Three-phase current measurement |
|
| Jaw diameter |
|
| Capacitance |
|
| NCV |
|
