Overview

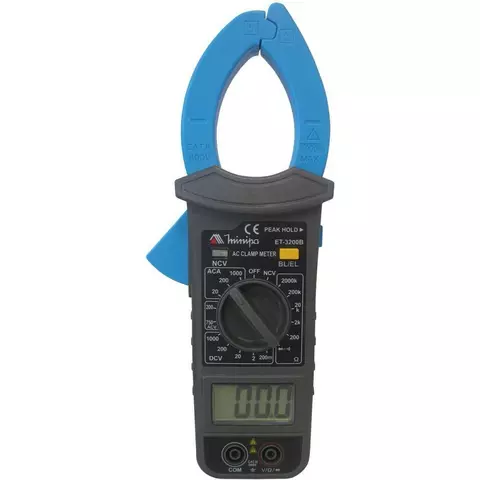

![Digital Clamp Meter Minipa ET 3200B](https://i24.psgsm.net/gsm.com/p/856822/480/digital-clamp-meter-minipa-et-3200b.jpg)
1 kg Warranty: 36 months
Clamp meter for measuring AC current, peak AC current, AC/DC voltage and resistance, conducting diode and continuity tests, NCV detection. LCD display. Max. conductor diameter: 40 mm. Read more
Buy wholesale and save
Inform of price reduction
Description

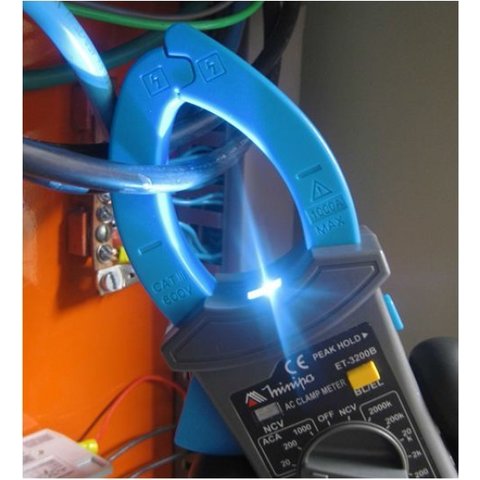

Minipa ET-3200B is a digital clamp meter for measuring AC current, AC/DC voltage and resistance, as well as conducting diode and continuity tests, non-contact voltage detection.
Features
- 3 ½ digit LCD display
- Manual range
- Measuring and test functions:
- AC current
- Peak AC current
- AC/DC voltage
- resistance
- diode
- continuity
- non-contact voltage detection (NCV)
User Manual
Download Minipa ET-3200B Analog Clamp Meter User Manual (Português).
Technical Specifications
Function | Range | Resolution | Accuracy |
---|---|---|---|
AC Current | 20 A | 10 mA | ±(3%+8D) |
200 A | 100 mA | ||
1000 A | 1 A | ||
AC Current (Peak Hold) | 20 A | 10 mA | ±(6.0%+9D) |
200 A | 100 mA | ±(4.0%+9D) | |
1000 A | 1 A | < 800A ±(4.0%+9D) > 800A ±(6.0%+9D) |
|
AC Voltage | 200 V | 100 mV | ±(1.5%+5D) |
750 V | 1 V | ||
DC Voltage | 200 mV | 0.1 mV | ±(0.8%+5D) |
2 V | 1 mV | ||
20 V | 10 mV | ||
200 V | 100 mV | ||
1000 V | 1 V | ||
Resistance | 200 Ω | 0.1 Ω | ±(1.5%+5D) |
2 kΩ | 1 Ω | ±(1.5%+3D) | |
20 kΩ | 10 Ω | ||
200 kΩ | 100 Ω | ||
2 MΩ | 1 kΩ | ±(2%+5D) | |
20 MΩ | 10 kΩ | ±(3%+5D) | |
General Characteristics | |||
Jaw Size | 40 mm | ||
Display | 3 ½ digit LCD, max. ±1999 | ||
Power | 1 x 9 V battery (NEDA 1604 or 6F22 or 006P) | ||
Operation Environment | 0°C to 40°C, relative humidity < 70% max. | ||
Size | 250 × 95 × 45 mm | ||
Weight | 345 g (with battery) |
Video
Package Contents
- Minipa ET-3200B Digital Clamp Meter – 1 pc.
- Test leads – 1 pair
- Battery – 1 pc.
- Instruction manual – 1 pc.
- Carrying case – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
