Digital Clamp Meter Minipa ET-3960
id: 856825
Digital Clamp Meter Minipa ET-3960
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 44.00
Notify
when in stock
when in stock
Overview

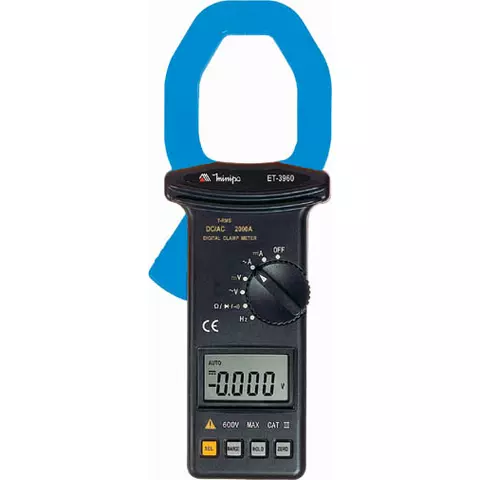

![Digital Clamp Meter Minipa ET 3960](https://i30.psgsm.net/gsm.com/p/856825/480/digital-clamp-meter-minipa-et-3960.jpg)
1 kg Warranty: 12 months
True RMS clamp meter for measuring AC/DC current, AC/DC voltage, resistance, frequency, diode and continuity test. LCD display. Max. conductor diameter: 57 mm. Read more
Buy wholesale and save
Inform of price reduction
Description
Minipa ET-3960 is a digital clamp meter for measuring AC & DC current, AC & DC voltage, resistance, frequency, temperature, as well as diode and continuity test.
Features
- 3 ¾ digits LCD display
- True RMS AC
- Data hold
- Manual and Auto range
- Measuring and test functions:
- AC/DC voltage
- AC/DC current
- Resistance
- Frequency
- Diode test
- Continuity test
- Auto Power Off
- Safety category: IEC1010-1 CAT II 600V
Technical Specifications
Measurement Characteristics | |
---|---|
DC voltage | 4 V / 40 V / 400 V / 1000 V |
AC voltage (True RMS) | 4 V / 40 V / 400 V / 750 V |
DC current | 400 A / 2000 A |
AC current (True RMS) | 400 A / 2000 A |
Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
Frequency | 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz |
General Characteristics | |
Jaw Opening / Conductor Diameter | 57 mm |
Display | 3 ¾ digits LCD (4000 counts) |
Power | 1 × 9 V battery (IEC6LF22 or NEDA 1604) |
Size | 240 × 100 × 50 mm |
Weight | 610 g (with battery) |
Video
Package Contents
- Minipa ET-3960 Digital Clamp Meter – 1 pc.
- Measuring probes – 1 pair
- Batteries – 2 pcs.
- Instruction manual – 1 pc.
- Carrying case – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
