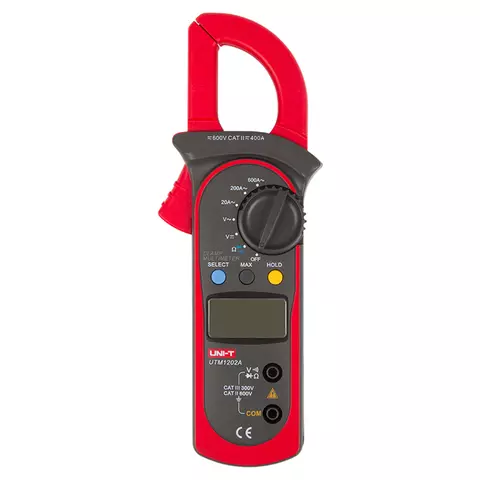

Digital Clamp Meter UNI-T UT202A
id: 840025
Digital Clamp Meter UNI-T UT202A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
0.55 kg Warranty: 24 months
The reliable device for measuring AC and DC voltage, AC current, resistance, frequency, duty cycle, performing diode check and continuity test. Read more
Discontinued
Description
UNI-T UT202A is reliable digital clamp meter that is designed for measuring AC/DC voltage and AC, resistance, and performing diode check and continuity test.
UNI-T UT202A Digital Clamp Meter User Manual
Download UNI-T UT202A Digital Clamp Meter User ManualUNI-T UT202A Digital Clamp Meter Features
- Measuring functions:
- AC/DC voltage
- AC current
- resistance
- continuity test (with buzzer)
- diode test
- Data Hold function
- Low battery indication
UNI-T UT202A Digital Clamp Meter Techical Specifications
| Display | 1999 digit LCD, 36 × 18 mm | |
| DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 600 V |
| Accuracy | ±(0.8%+1) | |
| AC voltage | Range | 2 V / 20 V / 200 V / 600 V |
| Accuracy | ±(1.2%+5) | |
| AC current | Range | 20 A / 200 A / 600 A |
| Accuracy | ±(1.5%+5) | |
| Resistance | Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Accuracy | ±(0.8%+3) | |
| Power | 9 V battery (6F22) | |
| Dimensions (H × W × D) | 210 × 76 × 30 mm | |
| Weight | 200 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
UNI-T UT202A Digital Clamp Meter Package Contents
- UNI-T UT202A clamp meter (1 pc.)
- Test leads (1 pair)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
