The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Availability in stock:
HK
ID: 898893 0.85 kg

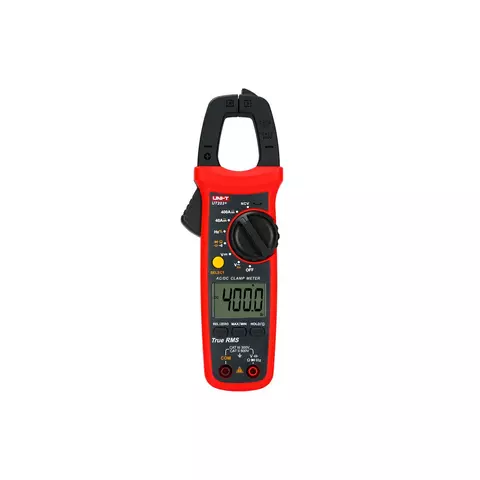

Digital Clamp Meter UNI-T UT203+
id: 897073
Digital Clamp Meter UNI-T UT203+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 37.72
Overview
0.8 kg Warranty: 24 months
True RMS clamp meter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for diodes testing. Read more
USD 37.72
Buy wholesale and save
You may also like
Description

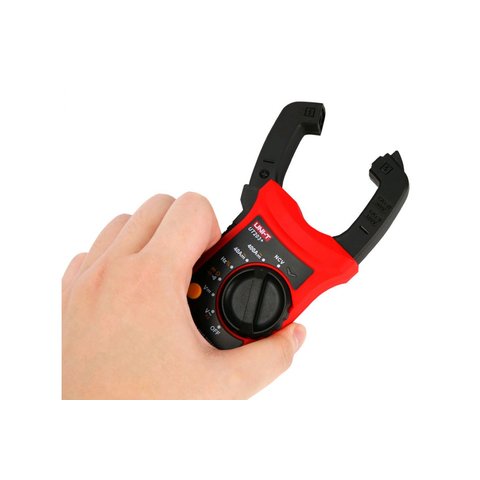

UNI-T UT203+ is a True RMS clamp meter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for diodes testing.
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- duty ratio;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD with backlight.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption without backlight is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
- REL measurements.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 40 A / 400 A | ±(2%+5) |
| DC Current | 40 A / 400 A | ±(2%+5) |
| DC Voltage | 400 mV | ±(0.7%+3) |
| 4 V / 40 V / 400 V / 600 V | ±(0.5%+2) | |
| AC Voltage | 4 V | ±(1%+5) |
| 40 V / 400 V / 600 V | ±(0.8%+5) | |
| Resistance | 400 Ω | ±(1%+2) |
| 4 kΩ / 40 kΩ / 400 kΩ | ±(0.8%+2) | |
| 4 MΩ / 40 MΩ | ±(2.5%+5) | |
| Capacitance | 40 nF / 400 nF / 4 μF / 40 μF / 400 μF | ±(4%+5) |
| 4 mF / 40 mF | ±10% | |
| Frequency | 10 Hz ~ 10 MHz | ±(0.1%+4) |
| Duty Ratio | 0.1% ~ 99% | ±(3%+5) |
| General Specifications | ||
| Display | 4099 count LCD | |
| Max. jaw opening | 28 mm in diameter | |
| Drop test | 1 m | |
| Power | 1.5V battery AAA × 2 pcs. | |
| Dimensions | 215 × 63.5 × 36 mm | |
| Weight | 235 g (with batteries) | |
User Manual
Download UNI-T UT203+ user manual.
Package Contents
- Digital Clamp Meter UNI-T UT203+ — 1 pc.
- Test Leads — 1 pair
- Case — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
