Digital Clamp Meter UNI-T UT203R (UT203+ analogue)
id: 905847
Digital Clamp Meter UNI-T UT203R (UT203+ analogue)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
1 kg Warranty: 24 months
UNI-T UT203R can measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, as well as perform live wire/continuity/diode testing. Read more
Price coming soon
Description

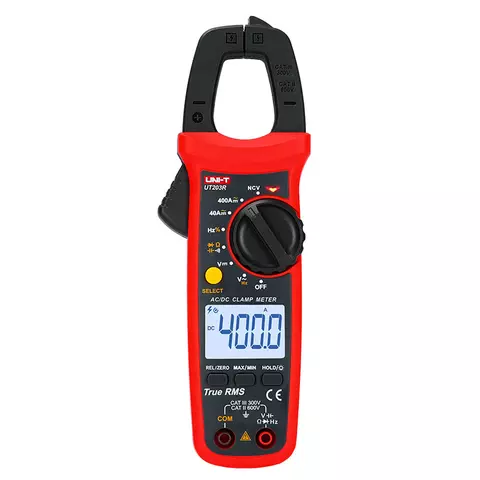

UNI-T UT203R (UT203+ analogue) is a True RMS digital clamp meter designed to measure AC/DC current, AC/DC voltage, AC voltage frequency, resistance, capacitance, and frequency. It may be used to test live wires, diodes, and continuity.
Features
- True RMS;
- Small current measurement;
- Non-contact voltage test (NCV);
- Live wire testing;
- Continuity testing;
- Diode testing;
- Data hold;
- Low battery indication;
- Larger display and digits as compared to earlier models;
- Display backlight.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC current | 0.04 ~ 400 A | ±(2% + 5) |
| AC current | 0.04 ~ 400 A | ±(2% + 5) |
| DC voltage | 600 V | ±(0.5% + 2) |
| AC voltage | 600 V | ±(0.8% + 5) |
| AC voltage frequency | 10 Hz ~ 60 kHz | ±(0.5% + 2) |
| Resistance | 40 MΩ | ±(0.8% + 2) |
| Capacitance | 40 mF | ±(4% + 5) |
| Frequency | 10 Hz ~ 10 MHz | ±(0.1% + 4) |
| General Specifications | ||
| Display | 4,000 count, 37 mm × 25 mm | |
| Jaw opening | 28 mm | |
| Power | 1.5 V battery (R03) × 2 pcs. | |
| Dimensions | 215 mm × 63 mm × 36 mm | |
| Weight | 235 g | |
Package Contents
- Digital clamp meter UNI-T UT203R (UT203+ analogue) – 1 pc.
- Test leads – 1 pair
- Carrying bag – 1 pc.
- AAA 1.5 V battery – 2 pcs.
- User manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
