Digital Clamp Meter UNI-T UT204R (UT204+ analogue)
id: 905848
Digital Clamp Meter UNI-T UT204R (UT204+ analogue)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview

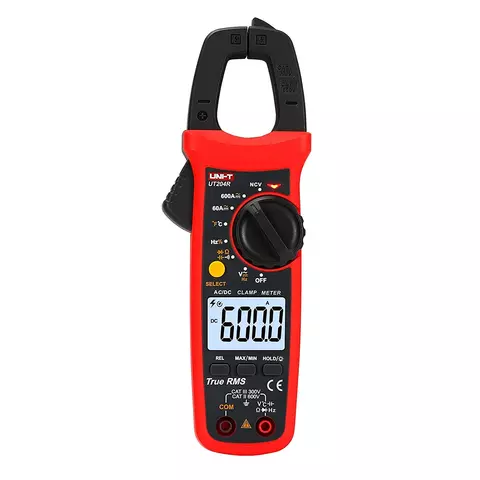

![Digital Clamp Meter UNI T UT204R UT204+ analogue](https://i84.psgsm.net/gsm.com/p/905848/480/digital-clamp-meter-uni-t-ut204r-ut204plus-analogue.jpg)
1 kg Warranty: 24 months
UNI-T UT204R can measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as perform live wire/continuity/diode testing. Read more
Inform of price reduction
Frequently bought together
Description
UNI-T UT204R (UT204+ analogue) is a True RMS digital clamp meter designed to measure AC/DC current, AC/DC voltage, AC voltage frequency, resistance, capacitance, temperature, and frequency. It may be used to test live wires, diodes, and continuity.
Features
- True RMS;
- Small current measurement;
- Non-contact voltage test (NCV);
- Live wire testing;
- Continuity testing;
- Diode testing;
- Data hold;
- Low battery indication;
- Larger display and digits as compared to earlier models;
- Display backlight.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC current | 0.06 ~ 600 A | ±(2% + 5) |
AC current | 0.06 ~ 600 A | ±(2% + 5) |
DC voltage | 600 V | ±(0.5% + 2) |
AC voltage | 600 V | ±(0.8% + 5) |
AC voltage frequency | 10 Hz ~ 60 kHz | ±(0.5% + 2) |
Resistance | 60 MΩ | ±(0.8% + 2) |
Capacitance | 60 mF | ±(4% + 5) |
Temperature | -40°C ~ 1,000°C | ±(1.5% + 5) |
Frequency | 10 Hz ~ 10 MHz | ±(0.1% + 4) |
General Specifications | ||
Display | 6,000 count, 37 mm × 25 mm | |
Jaw opening | 28 mm | |
Power | 1.5 V battery (R03) × 2 pcs. | |
Dimensions | 215 mm × 63 mm × 36 mm | |
Weight | 235 g |
Package Contents
- Digital clamp meter UNI-T UT204R (UT204+ analogue) – 1 pc.
- Test leads – 1 pair
- K-type temperature probe – 1 pc.
- Cloth bag – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
