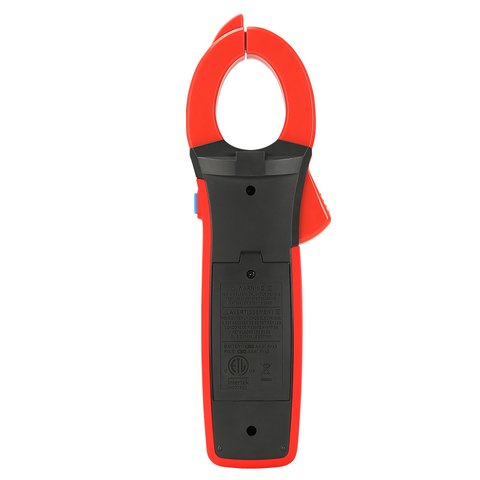

Digital Clamp Meter UNI-T UT208B
id: 898466
Digital Clamp Meter UNI-T UT208B
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 69.14
Overview
1 kg
Availability in stock:
HK
Warranty: 24 months True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing. Read more
USD 69.14
Description
UNI-T UT208B – is an autoranging True RMS digital clamp meter equipped with a large 6000-count LCD. This clamp meter measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
In addition, the UNI-T UT208B measures inrush currents (for capturing transient current), LoZ ACV (for eliminating ‘ghost' voltage), has a low-pass filter (LPF ACV) and features a non-contact voltage detection (NCV mode).
Features
- Functions:
- AC/DC current;
- AC/DC voltage;
- inrush current;
- resistance;
- LoZ ACV;
- capacitance;
- temperature:
- duty cycle;
- NCV;
- continuity;
- diode testing.
- Auto ranging.
- Built-in flashlight.
- True RMS.
- ZERO mode.
- Relative mode.
- Data hold.
- Automatic backlight.
- Auto power off.
- Low battery indication.
- MAX/MIN mode.
- Auto Sleep and Wake Up function.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 1000 A | ±(2%+5) |
| DC current | 1000 A | ±(2%+5) |
| AC current frequency response | 40 Hz~400 Hz | |
| Inrush current | 1000 A | ±(10%+10) |
| AC voltage | 6 V | ±(1.2%+3) |
| 60 V/600 V/1000 V | ±(1%+8) | |
| DC voltage | 600 mV | ±(0.8%+3) |
| 6 V/60 V | ±(0.5%+5) | |
| 600 V | ±(0.5%+5) | |
| 1000 V | ±(0.5%+5) | |
| Low pas filter (LPF ACV) | 600 V/1000 V | ±(2%+5) |
| AC voltage frequency response | 40 Hz~400 Hz | |
| LoZ ACV | 600 V/1000 V | ±(2%+5) |
| Resistance | 600 Ω | ±(1%+3) |
| 6 kΩ/60 kΩ/600 kΩ | ±(1%+2) | |
| 6 MΩ/60 MΩ | ±(2%+8) | |
| Capacitance | 60 nF | ±(4%+25) |
| 600 nF/6 μF/60 μF/600 μF | ±(4%+5) | |
| 6 mF/60 mF | ±(10%+9) | |
| Low voltage frequency | 10 Hz~1 MHz | ±(0.1%+3) |
| Temperature | -40℃~300℃ | ±(1%+20) |
| 300℃~1000℃ | ±(1%+2) | |
| Duty cycle | 10%~90% | ±(2.6%+7) |
| General Specifications | ||
| Display | LCD, 6000 count, 43 mm × 45 mm | |
| Power | 1.5V battery (R03) × 3 pcs. | |
| Jaw opening | 42 mm | |
| Current frequency | 50 Hz~60 Hz | |
| Analog bar | 31 segment | |
| Input impedance | ≥10 MΩ | |
| Dimensions | 272 mm × 81 mm × 43.5 mm | |
| Weight | 420 g | |
User Manual
Download UNI-T UT208B user manual.
Package Contents
- Digital Clamp Meter UNI-T UT208B — 1 pc.
- Test Leads — 1 set
- K-type temperature probe — 1 pc.
- Cloth Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
