Digital Clamp Meter UNI-T UT216A
id: 886875
Digital Clamp Meter UNI-T UT216A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 44.51
Overview
1 kg Warranty: 24 months
AC/DC voltage, AC current, resistance, capacitance measurements. Diode, continuity tests. NCV measurements. Read more
USD 44.51
Buy wholesale and save
Description
UNI-T UT216A Digital Clamp Meter is designed for measuring high frequency currents in railways and aerospace, server rooms, IT systems, etc.
Features
- True RMS
- Auto range
- 3 times/s sampling rate
- MAX/MIN/Relative modes
- Data hold
- NCV, non-contact AC voltage testing
- Continuity buzzer
- Flashlight
- LCD backlight
- Auto power off
- Low battery indication
- Input protection
- Input impedance for DCV ≥10 MΩ
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 600 A | ±(2.5%+5) |
| AC current frequency response | 50-60Hz | |
| AC voltage | 750 V | ±(1.2%+5) |
| AC voltage frequency response | 40~400 Hz | |
| DC voltage | 1000 V | ±(0.8%+1) |
| Resistance | 60 MΩ | ±(1%+2) |
| Capacitance | 60 mF | ±(4%+5) |
| Diode | Around 3.0 V | |
| General Characteristics | ||
| Jaw opening | 30 mm | |
| Power Supply | 1.5 V battery (R03) x 3 | |
| Display | LCD, 38 × 24 mm | |
| Size | 220 × 75 × 40 mm | |
| Weight | 232 g | |
Video

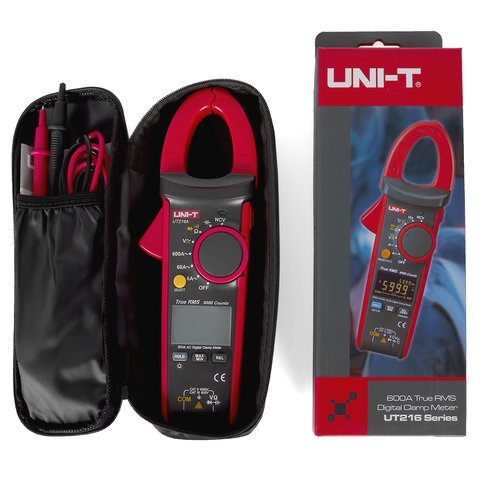

Package Contents
- UNI-T UT216A Digital Clamp Meter — 1 pc.
- Test leads — 1 set
- User manual — 1 pc.
- Case — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
