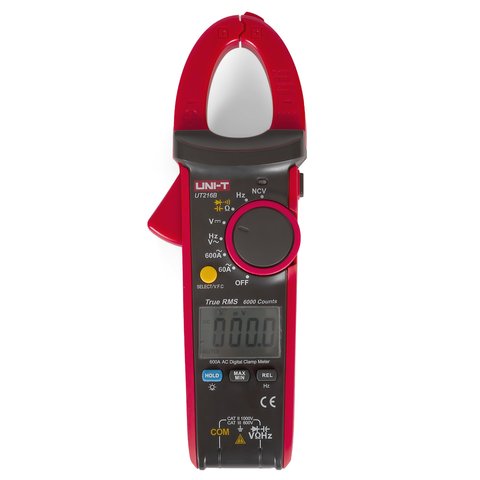

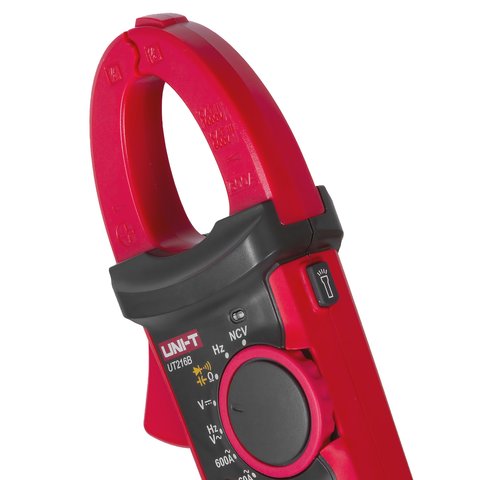

Digital Clamp Meter UNI-T UT216B
id: 886872
Digital Clamp Meter UNI-T UT216B
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 57.65
Notify
when in stock
when in stock
Overview
![Digital Clamp Meter UNI T UT216B](https://i94.psgsm.net/gsm.com/p/886872/480/digital-clamp-meter-uni-t-ut216b.jpg)
1 kg Warranty: 24 months
AC/DC voltage, AC current, resistance, frequency, capacitance measurements. Diode, continuity tests. NCV measurements. Read more
Buy wholesale and save
Inform of price reduction
You may also like
Frequently bought together
Description
UNI-T UT216B Digital Clamp Meter is designed for measuring high frequency currents (up to 400 Hz) in railways and aerospace, server rooms, IT systems, etc.
Features
- 400 Hz measurement
- True RMS
- Auto range
- 3 times/s sampling rate
- MAX/MIN/Relative modes
- Data hold
- NCV, non-contact AC voltage testing
- VFC, low pass filter
- Continuity buzzer
- Flashlight
- LCD backlight
- Auto power off
- Low battery indication
- Input protection
- Input impedance for DCV ≥10 MΩ
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC current | 600 A | ±(2.5%+5) |
AC current frequency response | 40~400 Hz | |
AC voltage | 750 V | ±(1.2%+5) |
AC voltage frequency response | 40~400 Hz | |
DC voltage | 1000 V | ±(0.8%+1) |
Resistance | 60 MΩ | ±(1%+2) |
Capacitance | 60 mF | ±(4%+5) |
Frequency | 10 Hz~1 MHz | ±(0.1%+4) |
Diode | Around 3.0 V | |
General Characteristics | ||
Jaw opening | 30 mm | |
Power Supply | 1.5 V battery (R03) x 3 | |
Display | LCD, 38 × 24 mm | |
Size | 220 × 75 × 40 mm | |
Weight | 232 g |
Video

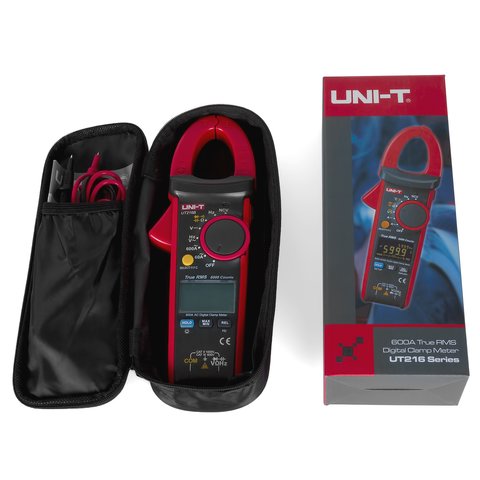

Package Contents
- UNI-T UT216B Digital Clamp Meter — 1 pc.
- Test leads — 1 set
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
