Digital Clamp Meter UNI-T UT216C
id: 918629
Digital Clamp Meter UNI-T UT216C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Overview
Video
Video
0.25 kg Warranty: 24 months
Digital clamp meter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency and temperature, performing NCV test. Read more
Price coming soon
Description

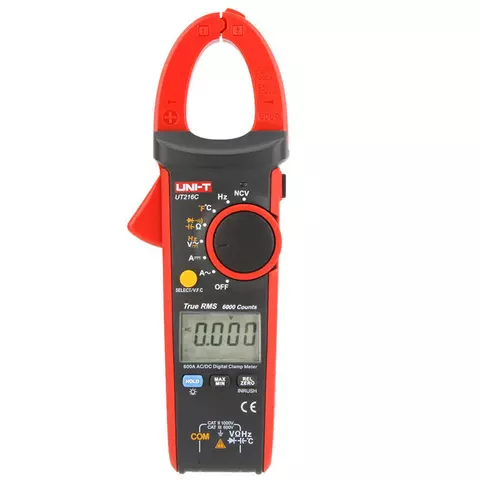

UNI-T UT216C – reliable digital True RMS clamp meter designed for measuring AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also performing NCV test.
Features
- Display Count 6000
- Auto Range
- Jaw Capacity 30 mm
- True RMS
- Diode Test
- NCV
- VCF
- Data hold
- Zero/Rel/max/min Mode
- Inrush Current
- Bargraf 61
- Display Backlight
- LED flashlight
- Auto Power Off
- Continuity Buzzer
- Low Battery Indication
- Input Protection
- Input Impedance DC ≥10MΩ
Technical Specifications
| AC Current | 60 A / 600 A ± (2.5%+5) |
| DC Current | 60 A / 600 A ± (2.5%+5) |
| AC Voltage | 6 V / 60 V / 600 V / 750 V ±(1.2%+5) |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V ±(0.8%+1) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ±(1%+2) |
| Capacitance | 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF ±(4%+5) |
| Frequency | 10 Hz ~ 1 MHz ±(0.1%+4) |
| Temperature | -40°C ~ 1000°C ±(2%+10)* |
| General Characteristics | |
|---|---|
| Display | LCD, 38x24 mm |
| Power | 3 x 1.5V AAA |
| Size | 220x75x40 mm |
| Weight | 231.7 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- UNI-T UT216C Digital Clamp Meter — 1 pc.
- Test Leads (1 m) — 2 pcs.
- Temperature Probe (80 cm) — 1 pc.
- Pouch — 1 pc.
- English user manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
