The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Availability in stock:
HK
ID: 898893 0.85 kg

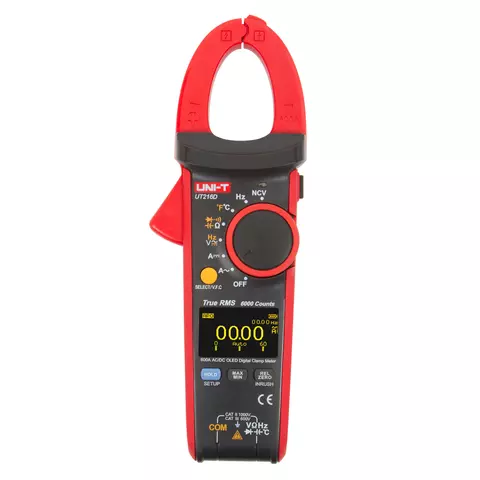

Digital Clamp Meter UNI-T UT216D
id: 855804
Digital Clamp Meter UNI-T UT216D
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 185.90
Overview
Video
Video
1 kg Warranty: 24 months
Digital clamp meter with OLED display measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency and temperature, also performing diode check and continuity test. Read more
USD 185.90
Buy wholesale and save
You may also like
This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing.
Availability in stock:
HK
ID: 891579 0.6 kg
Description
UNI-T UT216D is a reliable digital True RMS clamp meter designed for measuring AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, also performing diode check and continuity test.
Features
- Measuring functions:
- AC/DC voltage
- AC/DC current
- resistance
- capacitance
- temperature
- frequency
- diode check
- continuity test
- 30 mm jaw diameter
- Auto ranging
- Data hold function
- Sleep mode
- Low battery display
- OLED display
Technical Specifications
| Display | OLED, max. 6000 digits 38 × 24 mm |
||
| AC voltage | Range | 6 V / 60 V / 600 V / 750 V | |
| Accuracy | ±(1.2%+5) | ||
| DC voltage | Range | 600 mV / 6 V / 60 V / 600 V / 1000 V | |
| Accuracy | ±(0.8%+1) | ||
| AC current | Range | 60 A / 600 A | |
| Accuracy | ±(2.5%+5) | ||
| DC current | Range | 60 A / 600 A | |
| Accuracy | ±(2.5%+5) | ||
| Resistance | 600 Ω / 6 KΩ / 60 KΩ / 600 KΩ / 6 MΩ / 60 MΩ | ||
| Capacitance | 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF | ||
| Frequency | 10 Hz - 1 MHz | ||
| Temperature | -40 °C ～ 1000 °C (-40 °F ～ 1832 °F) | ||
| Power | 3 × AAA 1.5 V battery | ||
| Dimensions | 220 × 75 × 40 mm | ||
| Weight | 231 g | ||
Video
You'll find even more video reviews in the Video tab. Go and check it out!

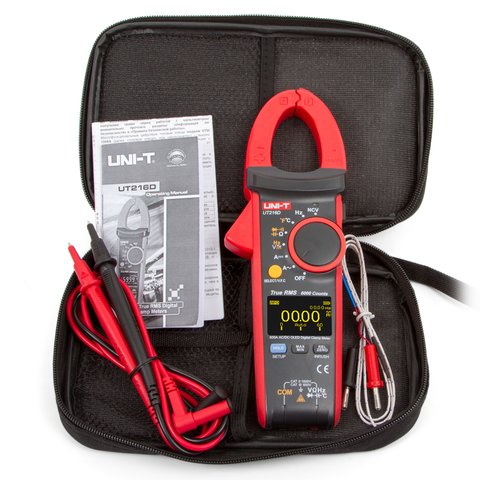

Package Contents
- UNI-T UT216D digital clamp meter - 1 pc.
- Test leads - 1 pair
- Point contact temperature probe - 1 pc.
- Carrying bag - 1 pc.
- User manual - 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
