This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing.
Availability in stock:
HK
ID: 891579 0.6 kg
Digital Clamp Meter UNI-T UT219M
id: 886876
Digital Clamp Meter UNI-T UT219M
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 121.00
Overview
1 kg Warranty: 24 months
AC/DC voltage, AC current, resistance, capacitance, frequency, temperature. Diode test, 3-phase motor sequence test. Read more
USD 121.00
Buy wholesale and save
You may also like
Description

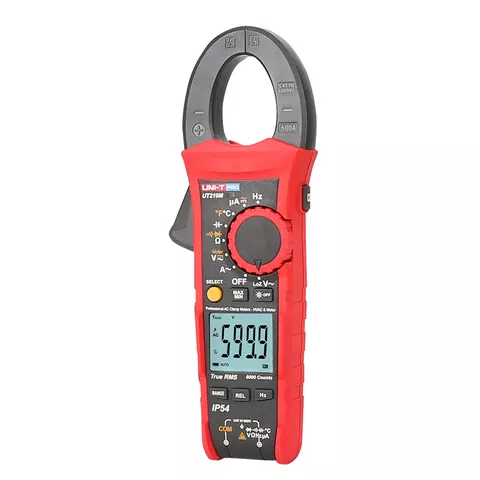

UNI-T UT219M Digital Clamp Meter is 600 A true RMS professional clamp meter with CAT IV 600 V rating. It is industrially designed with IP54 protection and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features
- LoZ mode (measuring continuity using impedance with low input voltage to reduces ghost voltages)
- 3-phase motor sequence test
- Temperature and μA measurements (flame sensor)
- AC+DC voltage
- Auto/Manual range
- True RMS
- 3 times/s measurement sampling rate
- MAX/MIN
- Relative mode (REL)
- Data hold (H)
- 2 m drop test
- IP54 protection
- Auto backlight
- Auto power off
- Low battery indication
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 600 A | ±(1.8%+6) |
| AC voltage | 600 V | ±(1%+6) |
| DC voltage | 600 V | ±(0.6%+3) |
| LoZ ACV | 600 V | ±(2.5%+6) |
| Resistance | 60 MΩ | ±(1%+3) |
| Capacitance | 60 mF | ±(4%+7) |
| Frequency | 600 Hz ~ 40 MHz | ±(0.1%+5) |
| Temperature | -40~1000℃ | ±(2%+5℃) |
| -40~1832℉ | ±(2%+9℉) | |
| AC current frequency response | 40 Hz ~ 400 Hz | |
| AC voltage frequency response | 40 Hz ~ 400 Hz | |
| 3-phase motor sequence test | 600 V | |
| Diode test | 3 V | |
| General Characteristics | ||
| Jaw opening | 33 mm | |
| Power Supply | 1.5 V battery (R03) x 3 | |
| Display | LCD, 35 × 31 mm | |
| Size | 235 × 82 × 47 mm | |
| Weight | 310 g | |
Video

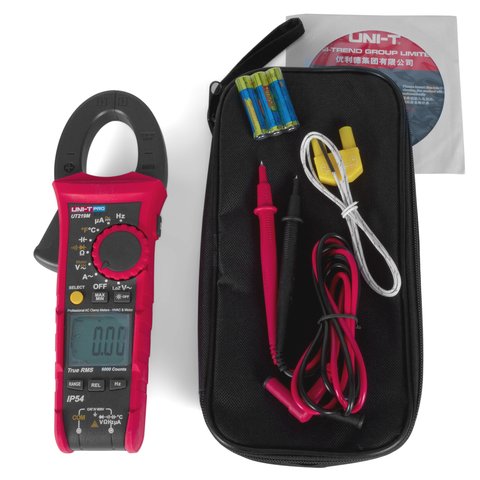

Package Contents
- UNI-T UT219M Digital Clamp Meter — 1 pc.
- Test leads — 1 set
- Point contact temperature probe — 1 pc.
- Batteries — 1 set
- Carrying bag — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
