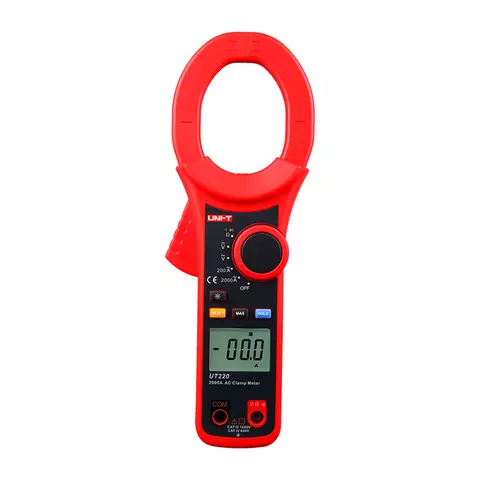

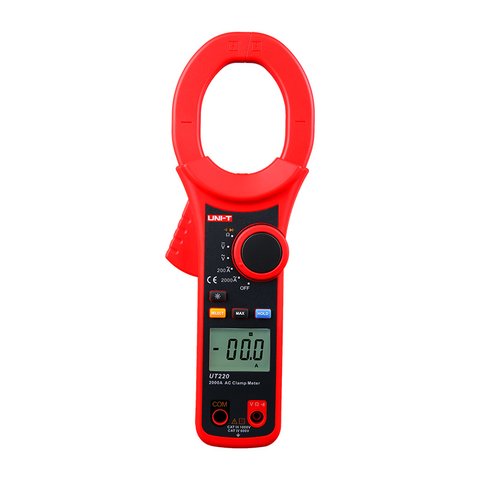

Digital Clamp Meter UNI-T UT220
id: 844703
Digital Clamp Meter UNI-T UT220
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 65.27
Notify
when in stock
when in stock
Overview
![Digital Clamp Meter UNI T UT220](https://i29.psgsm.net/gsm.com/p/844703/480/digital-clamp-meter-uni-t-ut220.jpg)
1 kg Warranty: 24 months
The reliable digital clamp meter for measuring AC current, AC/DC voltage, resistance and performing diode check and continuity test. Read more
Buy wholesale and save
Inform of price reduction
Frequently bought together
Description
UNI-T UT220 is reliable digital clamp meter that is designed for measuring AC current, AC/DC voltage, resistance and performing diode check and continuity test.
Features
- Functions:
- AC/DC voltage
- AC current
- resistance
- continuity test
- diode test
- Data hold
- Auto ranging.
- Auto power-off function.
- Low battery display.
Technical Specifications
AC current | Range | 200 A / 2000 A |
Accuracy | ±(2.5%+5) | |
AC voltage | Range | 2 V / 20 V / 200 V / 750 V |
Accuracy | ±(1.2%+5) | |
DC voltage | Range | 2 V / 20 V / 200 V / 750 V |
Accuracy | ±(0.8%+5) | |
Resistance | Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
Power | 9 V battery (6LF22) | |
Dimensions (H × W × D) | 298 × 100 × 48 mm | |
Weight | 390 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- UNI-T UT220 clamp meter (1 pc.)
- Test leads (1 pair)
- Carrying case (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
