Digital Clamp Meter UNI-T UT256B
id: 883846
Digital Clamp Meter UNI-T UT256B
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 51.98
Overview
0.5 kg
Availability in stock:
HK
Warranty: 24 months True-RMS digital clamp meter measures AC/DC current up to 200 A, voltage up to 1000 V, resistance up to 60 MΩ, and capacity up to 60 mF. Read more
USD 51.98
Description
UNI-T UT256B is a reliable and accurate digital clamp meter. It is used to measure DC and AC voltage, DC and AC current, resistance, capacitance, and also to perform diodes and continuity testing. In addition, the model is used for non-contact high voltage detection and True RMS measuring.
Features
- Basic measurement functions:
- AC/DC voltage;
- AC/DC current;
- resistance;
- capacitance.
- Auto-ranging.
- Data Hold function.
- Diodes and continuity testing
- Relative measurement mode (REL).
- True RMS measuring.
- Non-contact high voltage detection (NCV).
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 200 A | ± 2,5% + 5 |
| DC Current | 200 A | ± 2,5% + 5 |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ± 0,8% +3 |
| AC Voltage | 6 V / 60 V / 600 V / 750 V | ± 1,2% + 3 |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ | ± 1,0% + 2 |
| Capacitance | 99,99 nF / 999,9 nF / 9,999 μF / 99,99 μF / 999,9 μF / 9,999 mF / 60 mF | ± 4,0% + 2 |
| General Specifications | ||
| Display | LCD, 6000 count | |
| Power | 2 batteries 1.5 V AAA | |
| Dimensions | 210 × 53 × 35 mm | |
| Weight | 164 g | |
Video

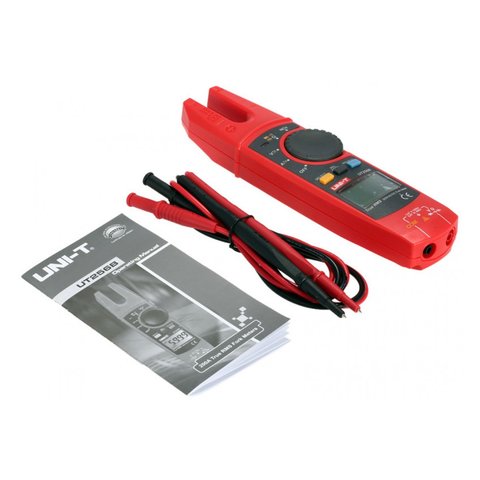

Package Contents
- Digital Clamp Meter UNI-T UT256B — 1 pc.
- Test Leads — 1 set.
- Carrying Bag — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
