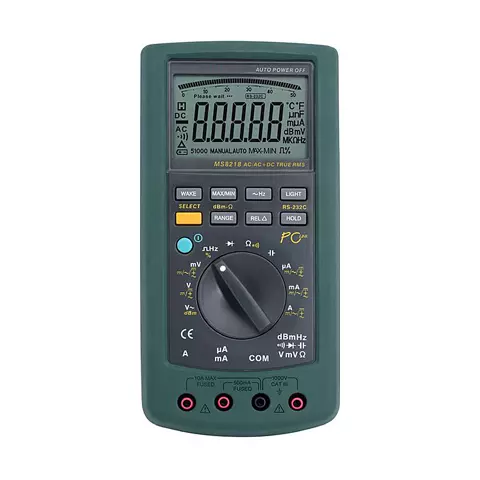

Digital Multimeter MASTECH MS8218
id: 9370
Digital Multimeter MASTECH MS8218
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 140.00
Overview
Video
Video
1.24 kg Warranty: 6 months
High-accuracy and multifunctional. PC - interface RS 232C. Root-mean-square measuring. (True RMS). Digital display with 50-segmented analog scale. Read more
USD 140.00
Description
MASTECH MS8218 – High-accuracy and multifunctional. PC - interface RS 232C. Root-mean-square measuring. (True RMS). Digital display with 50-segmented analog scale.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical specifications
| Range | auto/manual |
| Counts measurements | 50000 |
| DC voltage | 50/500 mV/5/50/500/1000 V ±0.03% |
| DC + AC voltage | 50/500 mV/5/50/500/100 V ±0.5% |
| DC current | 500/5000 µA/50/500 mA/5/10 A ±0.15% |
| AC current | 500/5000 µA/50/500 mA/5 A ±0.75%, 10 A ±1.5% |
| Resistence | 500 Ω/5/50/500 kΩ/5 MΩ ±0.1%, 50 MΩ ±0.5% |
| Capacitance | 50/500 nF/5/50 µF ±1%, 500/5000 µF ±2% |
| Comprobación de la integridad del cable | Yes |
| Diode test | Yes |
| Data Hold | Yes |
| Full overload protection | Yes |
| Indication for buttery low | Yes |
| Secondary injection molding case | Yes |
| Duty cycle | 5Hz - 500 kHz |
| Display | Yes |
| Buttery | 6 × 1.5V (AA) |
| Dimensions, mm | 200 × 100 × 40 mm |
| Infrared interface and PC Windows software | Yes |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Capacitance |
|
| Resistance |
|
| Continuity test |
|
| Frequency |
|
| Battery Testing |
|
