Digital Multimeter Pro'sKit MT-1270

id: 818914
Digital Multimeter Pro'sKit MT-1270
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon

Overview

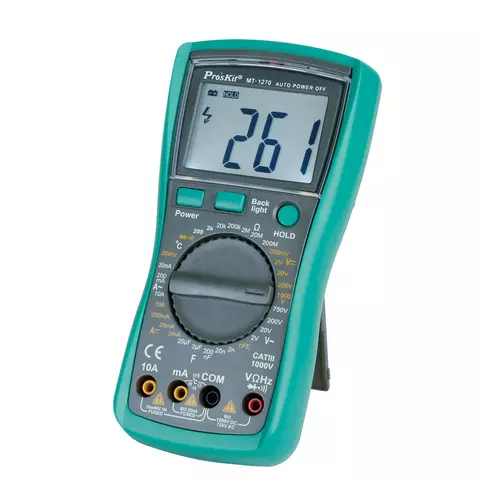

Digital Multimeter Pro'sKit MT 1270
0.35 kg Warranty: 6 months
Digital multimeter for AC/DC voltage and current, resistance, frequency, capacitance, temperature measurements, continuity and diode tests. Read more
Price coming soon
Price coming soon
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
ID: 834629

Digital Multimeter UNI-T UT55
4.5 (2)
USD 26.47
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Availability in stock: HK
ID: 834629 0.82 kg
Digital Multimeter Accta AT 290
New
ID: 891501

Digital Multimeter Accta AT-290
5 (11)
USD 11.95
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and can be used for continuity, transistor and diode tests.
Availability in stock: HK
ID: 891501 0.65 kg

Description

Digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance, temperature, and tests continuity and diodes.

Features

  • Large 3½ digit (1999) LCD
  • 0.5% best accuracy
  • Functions:
    • AC/DC voltage and current
    • resistance
    • frequency
    • capacitance
    • continuity (with buzzer)
    • diode test
    • temperature (with thermocouple)
  • Data hold function
  • Manual ranging
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3½ digit (1999) LCD
DC voltage, V 200mV/2V/20V/200V ±(0.5%+3d)
1000V ±(0.8%+10d)
AC voltage, V 2V/20V/200V ±(0.8%+5d)
750V ±(1.2%+10d)
DC current, A 2mA/20mA ±(0.8%+10d)
200mA ±(1.2%+8d)
10A ±(2.0%+5d)
AC current, A 2mA ±(1.0%+15d)
200mA ±(2.0%+5d)
10A ±(3.0%+10d)
Resistance, Ω 200Ω ±(0.8%+5d)
2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3d)
20MΩ ±(1.0%+25d)
200MΩ ±(5.0%+30d)
Frequency, Hz 2kHz ±(3.0%+18d)
200kHz ±(3.0%+18d)
Capacitance, F 20nF/2μF ±(2.5%+20d)
200μF ±(5.0%+10d)
Temperature, ºC -20~400ºC ±(1.0%+5d)
400~1000ºC ±(1.5%+15d)
EN61010-1 CAT II/III 1000V DC/750V AC
Battery 6F22 9V (not included)
Size (D × W × H), mm 175 × 88 × 38
Weight, g 318 (including battery)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 200 μF
Frequency
  • up to 200 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
