Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Availability in stock:
HK
ID: 898460 0.8 kg

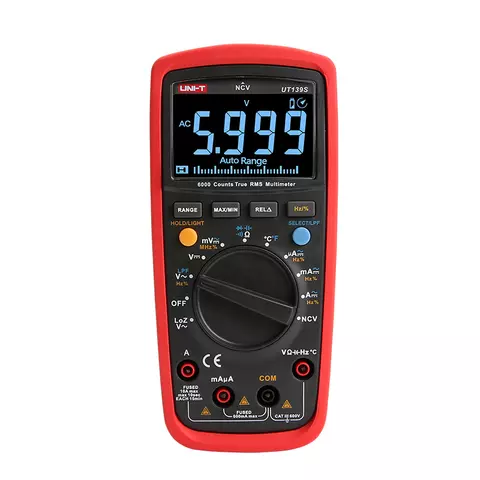

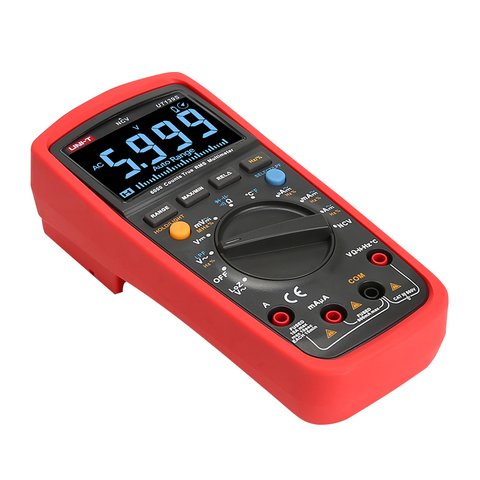

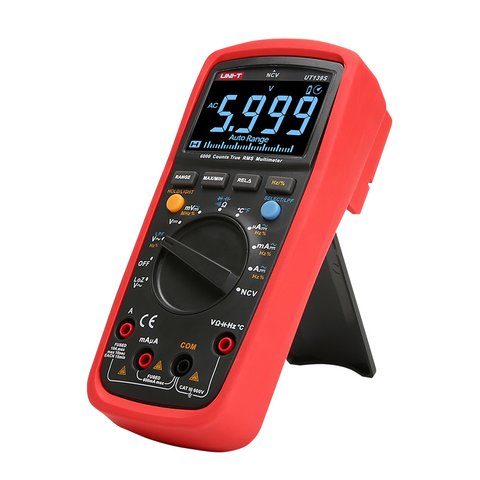

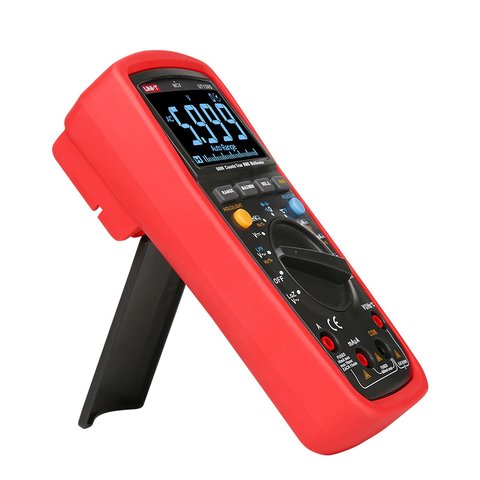

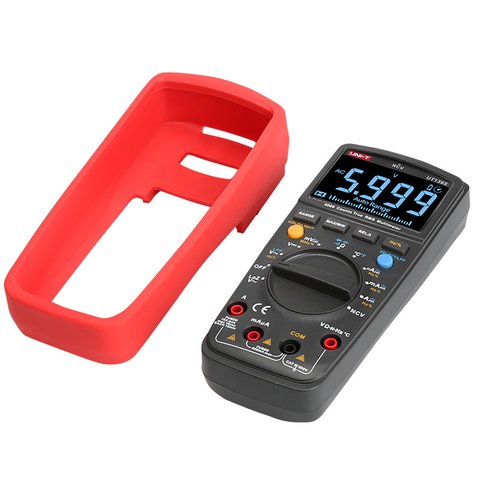

Digital Multimeter UNI-T UT139S
id: 883721
Digital Multimeter UNI-T UT139S
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 108.90
Overview
Video
Video
0.6 kg Warranty: 24 months
True RMS multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature. Read more
USD 108.90
Buy wholesale and save
You may also like
Description
UNI-T UT139S is a True RMS multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature.
Features
- Testing & measurement functions:
- AC/DC voltage;
- AC/DC current;
- capacitance;
- resistance;
- frequency;
- duty cycle;
- temperature;
- diode testing;
- continuity test (with buzzer);
- NCV.
- Auto/Manual ranging.
- True RMS measurements.
- Bandwidth: 45 Hz to 400 Hz.
- Data hold.
- Max/Min mode.
- CAT III 600 B rated.
- Large EBTN display that is perfect meter for working in dark environments.
- 31-segment analog bar graph.
- LPF function.
- LoZ function.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy | |
|---|---|---|---|
| DC voltage | 600 V | ±(0.5%+2) | |
| AC voltage | 600 V | ±(0.8%+3) | |
| DC current | 10 A | ±(0.7%+2) | |
| AC current | 10 A | ±(1%+3) | |
| Resistance | 60 MΩ | ±(0.8%+2) | |
| Capacitance | 99.99 mF | ±(4%+5) | |
| Frequency | 10 Hz ~ 10 MHz | ±(0.1%+4) | |
| Duty cycle | 0.1% ~ 99.9% | ||
| Temperature | °C | -40°C ~ 1000°C | ±(1%+4) |
| °F | -40°F ~ 1832°F | ±(1.5%+5) | |
| General Specifications | |||
| Power | 1.5 V battery (R6) × 2 | Bandwidth | 45 Hz ~ 400 Hz |
| Display | 6000-count, LCD EBTN, 58 × 36 mm | ||
| Dimensions | 170 × 80 × 48 mm | ||
| Weight | 345 g | ||
User Manual
Download UNI-T UT139S User Manual.
Package Contents
- Digital Multimeter UNI-T UT139S — 1 pc.
- Test leads — 2 pcs.
- Point contact temperature probe — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
