Digital Multimeter UNI-T UT17B PRO
id: 898474
Digital Multimeter UNI-T UT17B PRO
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 75.24
Overview
1 kg Warranty: 24 months
Highly reliable True RMS multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature, continuity, and performs diode testing. Read more
USD 75.24
Buy wholesale and save
Description

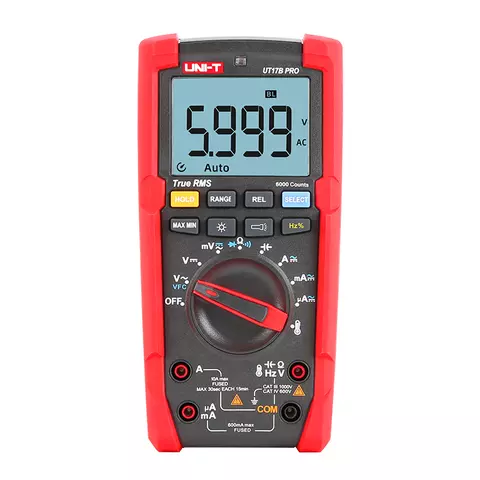

UNI-T UT17B PRO is a digital True RMS multimeter designed to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature, continuity, and can be used for diode testing.
Multimeter comes with gold-plated test leads for quick and accurate measurement. UT17B PRO complies with CAT III 1000V and CAT IV 600V overvoltage protection standards.
Features
- Functions:
- DC/AC voltage;
- DC/AC current;
- resistance;
- capacitance;
- frequency;
- duty cycle;
- temperature;
- diode testing;
- continuity test.
- True RMS measurements.
- VFC mode: variable frequency current measurement (it provides precise measurement of voltage and current by performing appropriate conversions for the VFC).
- Auto/manual range.
- Relative mode.
- Max/Min mode.
- Flashlight.
- Data hold.
- Low battery indication.
- Auto backlight.
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 1000 V | ±(0.5%+3) |
| AC Voltage | 1000 V | ±(1%+3) |
| AC Current | 10 A | ±(1%+3) |
| DC Current | 10 A | ±(0.8%+3) |
| Resistance | 60 MΩ | ±(0.5%+2) |
| Capacitance | 6000 μF | ±(2%+5) |
| Frequency | 10 Hz~100 kHz | ±(0.1%+3) |
| Duty cycle | 1%~99% | ±(1%+4) |
| Temperature | -55℃~500℃/-67℉~932℉ | ±(2%+1) |
| AC Frequency Response | 40~500 Hz | |
| General Specifications | ||
| Display | LCD, 6000-count | |
| Power | 1.5V battery (LR6) × 2 pcs. | |
| Certifications | CE/RoHS/cETLus | |
| Safety Ratings | AT III 1000V/CAT IV 600V | |
| Dimensions | 195 mm × 95 mm × 58 mm | |
| Weight | 484 g | |
User Manual
Download UNI-T UT17B PRO user manual.
Package Contents
- Digital Multimeter UNI-T UT17B PRO — 1 pc.
- Test Leads — 1 set
- K-type Thermocouple — 1 pc.
- Thermocouple Adapter — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
