Digital Oscilloscope FNIRSI DPOX180H

FNIRSI DPOX180H is a portable two-channel digital oscilloscope with a bandwidth of each channel up to 180 MHz and a sampling rate of up to 500 MSa/s. It features a built-in generator offering 14 standard waveforms including sine, square wave, triangle, pulse, saw, constant voltage, etc. Moreover, it incorporates fluorescence technology to emulate the waveform appearance of analog CRT oscilloscopes.

Features

• High sensitivity from 5 mV/div enables analysis of low-level signals
• Trigger time ranges from 5 ns to 50 s, facilitating examination of both fast and slow changes in detail
• Waveform refresh rate of up to 50000 wfm/s significantly enhances the likelihood of capturing one-time bursts and non-periodic signals
• Digital phosphor technology utilizes a color gradient to convey waveform repetition rate
• The built-in generator offers 14 standard waveforms and the ability to replicate oscillograms (output voltage: 1 V, frequency: 20 MHz for sine, 10 MHz for other waveforms)
• Equipped with a 2.8-inch IPS display with a resolution of 320×240
• Real-time waveform capture modes include auto, single, and normal; with rising and falling trigger edge options
• ZOOM function provides a convenient tool for detailed analysis, offering magnification ranging from 2 to 1000
• Bandwidth limitation feature restricts bandwidth to 20 MHz to filter out high-frequency interference when necessary
• Clone function - allows you to generate a signal captured by an oscilloscope
• A built-in 3000 mAh battery offers up to 3.5 hours of autonomy
• Fast auto-tuning function automatically configures settings for most periodic signals
• Frequency Domain Analysis FFT facilitates quick signal analysis
• Built-in 120 MB memory for storing up to 250 waveforms or 90 screenshots for viewing and analysis

Technical Specifications

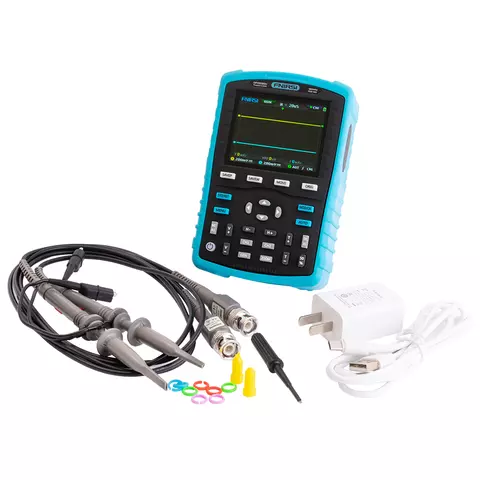

Package Contents

• Digital Oscilloscope FNIRSI DPOX180H — 1 pc.
• High-frequency 200 MHz Probe (1X and 10X) — 2 pcs.
• Power Adapter 5V 2A — 1 pc.
• USB Charging/Data Cable — 1 pc.
• User Manual — 1 pc.
