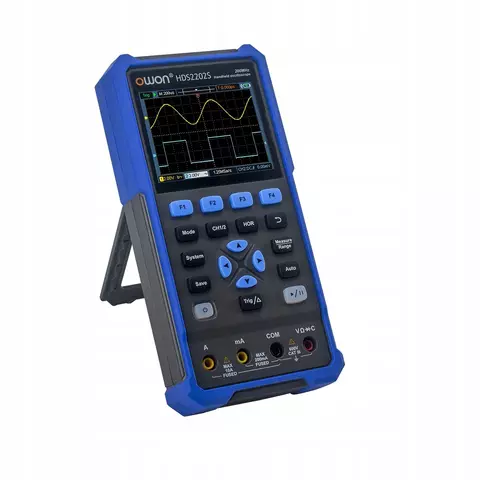

Digital Oscilloscope OWON HDS2202S

Name: Digital Oscilloscope OWON HDS2202S
Brand: OWON
SKU: 914790
Availability: OutOfStock
Rating: 5 (1 reviews)

id: 914790

Overview

Description

Specifications

Video

Delivery

Payment

Warranty

Price coming soon

Overview

Digital Oscilloscope OWON HDS2202S Preview 1

Digital Oscilloscope OWON HDS2202S Preview 2

Digital Oscilloscope OWON HDS2202S Preview 3

Video

5 (1)

1.2 kg Warranty: 12 months

Portable dual-channel oscilloscope with a built-in multimeter and waveform generator, 200 MHz bandwidth, 1 GSa/s sampling rate, 4 kpts memory, and 3.5" LCD Read more

Price coming soon

Impossible to estimate the shipping cost

Description

OWON HDS2202S is a portable two-channel oscilloscope with built-in multimeter and single-channel waveform generator with a maximum frequency of 25 MHz. The oscilloscope features a 200 MHz bandwidth, 1 GSa/s sampling rate, 4K record length, and a 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, capable of measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD make it suitable for using the oscilloscope outdoors.

Features

3-in-1 device: oscilloscope + multimeter+waveform generator
200 MHz bandwidth, 1 GSa/s sampling rate
Built-in signal generator generates sine (up to 25 MHz), square (up to 5 MHz), ramp (up to 1 MHz), pulse (up to 5 MHz) and arbitrary (up to 5 MHz) waveforms with a sampling rate of 125 MS/s
Multimeter testing modes include voltage, current, resistance, capacitance, diode, and continuity tests
3.5-inch high-resolution color high-contrast LCD, suitable for outdoor use
Rechargeable 18650 battery with ≤3W power consumption, providing up to 6 hours of continuous use
USB Type-C interface, supporting SCPI commands, and the capability to connect to an external battery
Self-calibration function

Technical Specifications

Oscilloscope
Channels	2
Bandwidth	200 MHz
Sample Rate	1 GSa/s
Acquisition Mode	Normal, Peak detect
Record Length	4K
Waveform Refresh Rate	10 000 wfrms/s
Input Coupling	DC, AC, GND
Input Impedance	1 MΩ±2%, in parallel with 16 pF±10 pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400 V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20 MHz
Horizontal Scale	2 ns/div-1000 s/div, step by 1-2-5
Vertical Sensitivity	10 mV/div - 10 V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, Single
Automatic Measurement	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors
Multimeter
Max. Resolution	20,000 counts
Testing Mode	Voltage, Current, Resistance, Capacitance, Diode, and Continuity
Input Impedance	10 MΩ
Max Input Voltage	AC 750V, DC 1000V
Max Input Current	DC: 10 A; AC: 10 A
Diode	0-2 V
Waveform Generator
Frequency Output	Sine: 0.1 Hz - 25 MHz Square: 0.1 Hz - 5 MHz Ramp: 0.1 Hz - 1 MHz Pulse: 0.1 Hz - 5 MHz Arbitrary: 0.1 Hz - 5 MHz
Sampling Rate	125 MSa/s
Channel	1
Amplitude Range (high impedance)	20 mVpp - 5 Vpp
Waveform Length	8K
Vertical Resolution	14 bit
Output Impedance	50 Ω
General Specifications
Display	3.5" LCD, 320 × 240 pixels
Communication Interface	USB Type-C
Dimensions	198 mm × 96 mm × 38 mm
Weight	600 g

Video

User Manual

Download OWON HDS2202S user manual.

Package Contents

Digital Oscilloscope OWON HDS2202S — 1 pc.
Oscilloscope Measuring Probes — 1 set
Multimeter Measuring Probes — 1 set
Probe Adjust — 1 pc.
BNC to Alligator Clip — 2 pcs.
USB Cable — 1 pc.
Soft Bag — 1 pc.
Quick Guide — 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
