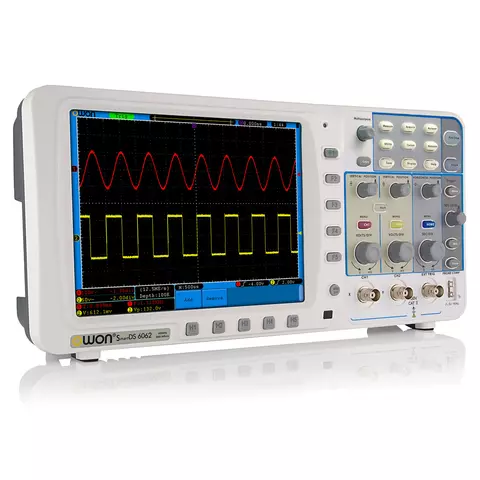

Digital Oscilloscope OWON SDS6062E

Name: Digital Oscilloscope OWON SDS6062E
Brand: OWON
SKU: 856861
Price: 360.00 USD
Availability: OutOfStock

id: 856861

Overview

Description

Specifications

Delivery

Payment

Warranty

USD 360.00

Overview

5.6 kg 110, 220 V Warranty: 12 months

Dual-channel digital oscilloscope with 60 MHz bandwidth, up to 500 MS/s real-time sample rate, and 8" display. Read more

USD 360.00

Buy wholesale and save

USD 360.00

Impossible to estimate the shipping cost

Description

OWON SDS6062E is a dual-channel digital oscilloscope with 60 MHz bandwidth, up to 500 MS/s real-time sample rate, and 8" display.

Features

Pass/Fail function
Autoscale function
8 inch LCD color display
Support USB for data transmission to PC
Waveform record and replay function

Technical Specifications

Bandwidth	60 MHz
Real time sample rate	500 MS/s
Channels	Dual channels + external trigger
Display	8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors
Input impedance	1 MΩ ± 2%, in parallel with 15 pF ± 3 pF
Record length	100 Kpts for each channel
Max. input voltage	400 V (PK-PK) (DC + AC PK-PK)
Probe attenuation factor	1X, 10X, 100X, 1000X
Vertical resolution (A/D)	8 bit (2 channels simultaneously)
Vertical sensitivity	2 mV/div – 10 V/div
Waveform Math	＋, －, ×, ÷, FFT
Waveform storage	15 waveforms
Communication interface	USB, Supports USB Flash Disk Storage, LAN
Mains Voltage	100 - 240 VAC RMS, 50/60 Hz, CAT II
Power Consumption	< 15 W
Fuse	2 A, T grade, 250 V
Dimensions	348 mm × 170 mm × 78 mm
Weight	~ 1.5 kg

Video

Package Contents

Owon SDS6062E Digital Oscilloscope – 1 pc.
Measuring probes – 1 pair
Power cord – 1 pc.
USB data cable – 1 pc.
CD – 1 pc.
User's Manual – 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
