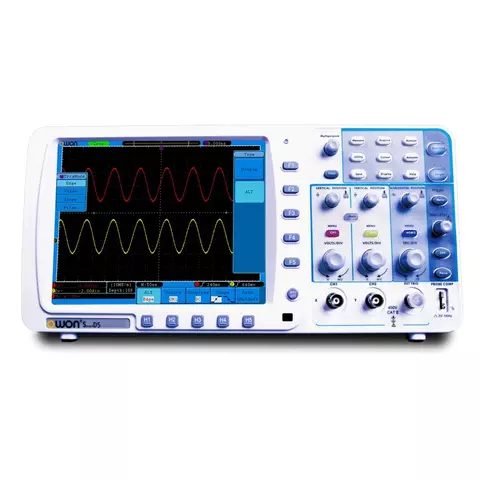

Digital Oscilloscope OWON SDS7102-V

Name: Digital Oscilloscope OWON SDS7102-V
Brand: OWON
SKU: 856863
Price: 475.00 USD
Availability: OutOfStock

id: 856863

Overview

Description

Specifications

Delivery

Payment

Warranty

USD 475.00

Overview

5.6 kg 110, 220 V Warranty: 12 months

Dual-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display. Read more

USD 475.00

Buy wholesale and save

USD 475.00

Impossible to estimate the shipping cost

Description

OWON SDS7102-V is a dual-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display.

Features

Pass/Fail function
Autoscale function
8 inch LCD color display
Interfaces: USB2.0, USB flash drive, LAN, VGA

Technical Specifications

Bandwidth	100 MHz
Real time sample rate	1 GS/s
Channels	Dual channels + external trigger
Display	8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors
Input impedance	1 MΩ ±2%, in parallel with 10 pF ±5 pF
Record length	10M
Max. input voltage	400 V (PK-PK) (DC + AC PK-PK)
Probe attenuation factor	1X, 10X, 100X, 1000X
Vertical resolution (A/D)	8 bit (2 channels simultaneously)
Vertical sensitivity	2 mV/div ~ 10 V/div
Waveform Math	＋, －, ×, ÷, FFT
Waveform storage	15 waveforms
Communication interface	USB2.0, USB flash drive, LAN, VGA
Mains Voltage	100 - 240 VAC RMS, 50/60 Hz, CAT II
Power Consumption	< 18 W
Fuse	2 A, T grade, 250 V
Dimensions	340 × 155 × 70 mm
Weight	~ 1.82 kg

Video

Package Contents

Owon SDS7102-V Digital Oscilloscope – 1 pc.
Measuring probes – 1 pair
Power cord – 1 pc.
USB data cable – 1 pc.
CD – 1 pc.
User's Manual – 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
