7 kg 110, 220 V Warranty: 36 months
Four-channel digital oscilloscope with 50 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
Discontinued
Description

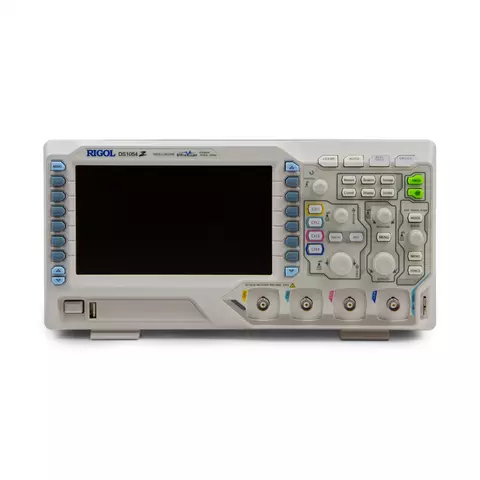

RIGOL DS1054Z digital oscilloscope is the new four-channel oscilloscope (50 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1054Z provides up to 30 000 wfms/s waveform acquisition rate.
RIGOL DS1054Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 50 MHz.
- 4 channels.
- Real-time sample rate: 1 GSa/s.
- Memory depth: 12 MB.
- Innovative UltraVision technology.
- Waveform acquisition rate up to 30,000 wfms/s.
- Low noise floor, dynamic Range: 1mV/div to 10V/div
- 7-inch color LCD.
- Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
- Compact design, small dimensions, light weight.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Bandwidth | 50 MHz |
| Channels | 4 |
| Real time sample rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel) |
| Memory depth | 12 MB, 24 MB (opt.) |
| Waveform acquisition rate | 30,000 wfms/s (Max. ) |
| Vertical sensitivity range | 1 mV/div - 10 V/div |
| Offset range | 1 mV/div to 499 mV/div: ± 2 V 500 mV/div to 10 V/div: ± 100 V |
| Vertical resolution | 8 bit |
| Math | Add, Subtract, Multiply, Divide, FFT, editable |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| General Specifications | |
|---|---|
| Power | 50 W (max.) |
| Power voltage | 100-240 V, 45-440 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |
| Cooling method | Fan |
| Display | 7" color LCD (800×480) |
| Weight | 3.8 kg (± 0.5 kg) |
| Dimensions | 313.1 × 160.8 × 122.4 mm |
Package Contents
- RIGOL DS1054Z digital oscilloscope (1 pc.)
- Passive probes (4 pcs.)
- Power cable (1 pc.)
- USB data cable (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
