Digital Vibration Tester UNI-T UT312

Name: Digital Vibration Tester UNI-T UT312
Brand: UNI-T
SKU: 894019
Price: 239.00 USD
Availability: InStock
Rating: 5 (1 reviews)

id: 894019

Overview

Description

Delivery

Payment

Warranty

USD 239.00

Overview

Digital Vibration Tester UNI-T UT312 Preview 1

Digital Vibration Tester UNI-T UT312 Preview 2

Digital Vibration Tester UNI-T UT312 Preview 3

Digital Vibration Tester UNI-T UT312 Preview 4

Digital Vibration Tester UNI-T UT312 Preview 5

Bestseller

5 (1)

1 kg

Availability in stock: HK

Warranty: 24 months

A tool used to measure displacement (1~1999 μm), velocity (0.1~199.9 mm/s), and acceleration of rotating and reciprocating machinery (0.1~199.9m/s²). Read more

USD 239.00

Impossible to estimate the shipping cost

Note! This item is shipped within 10 working days.

Description

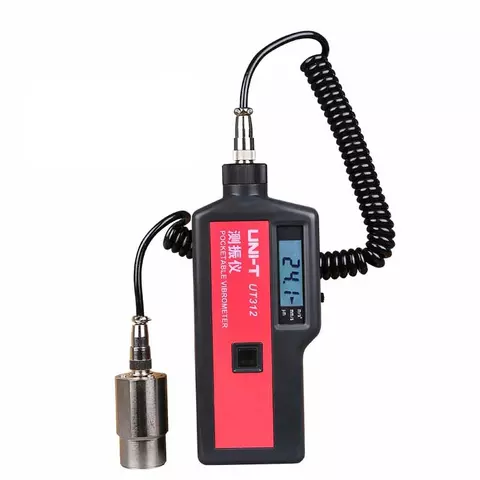

UNI-T UT312 is a portable digital vibration tester designed for measuring displacement, velocity, and acceleration of rotating and reciprocating machinery. UNI-T UT312 can be widely used in mechanical manufacturing, electric power, petroleum chemical industry, metallurgy, aerospace and other fields.

Features

Acceleration, velocity and displacement measurement.
Auto power off.
Low battery indication.
Data hold.

Technical Specifications

Function	Range
Acceleration measurement (O-P)	0.1～199.9 m/s²	Frequency response: 10～1500 Hz, Amplitude error: ≤±5%
Acceleration measurement (O-P)	0.1～199.9 m/s²	Amplitude linear error: ≤2.0 m/s², ≤±10%; ＞2.0 m/s², ≤±5%
Velocity measurement (RMS)	0.1～199.9 mm/s	Frequency response: 10～1500 Hz, Amplitude error: ≤±5%
Velocity measurement (RMS)	0.1～199.9 mm/s	Amplitude linear error: ≤2.0 m/s, ≤±10%; ＞2.0 m/s, ≤±5%
Displacement measurement (P-P)	1～1999 μm	Frequency response: 10～500 Hz, Amplitude error: ≤±5%
Displacement measurement (P-P)	1～1999 μm	Amplitude linear error: ≤20 μm, ≤±10%; ＞20 μm, ≤±5%
Battery life	up to 20 hours of continuous measuring
Display count	2000
Power	9V battery (6F22)
Weight	230 g (including battery)
Dimensions	185 mm × 68 mm × 30 mm

User Manual

Download UNI-T UT312 User Manual.

Package Contents

Digital Vibration Tester UNI-T UT312 — 1 pc.
User Manual — 1 pc.

Note! Batteries are not included in the package.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
