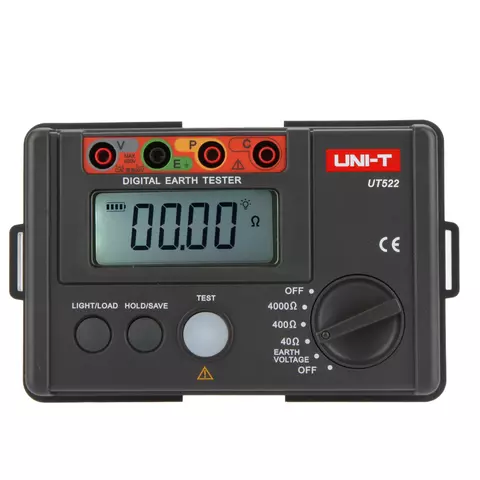

Earth Ground Tester UNI-T UT522
id: 845472
Earth Ground Tester UNI-T UT522
Overview
Description
Delivery
Payment
Warranty
USD 115.80
Overview
3.3 kg
Availability in stock:
HK
Warranty: 24 months Device for earth resistance testing up to 4000 Ω and earth voltage testing up to 400 V AC. Read more
USD 115.80
Description
UNI-T UT522 Earth Ground Tester for ground resistance & voltage measurements.
Features
- Functions:
- earth resistance testing
- earth voltage testing
- Data Hold function
- Reinforced insulation protection
- Over-range indication
- Data logging for 20 data sets
- Battery check function
- Display backlight
- Sleep mode
- Precision 3-Wires Testing
- Double Insulation Protection
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| Earth Resistance Testing | 0 ~ 40 Ω 0 ~ 400 Ω 0 ~ 4000 Ω |
±2%rdg±0.2 Ω ±2%rdg±3dgt ±2%rdg±3dgt |
| Earth Voltage Testing | 0~400 V AC (50/60 Hz) | ±1%rdg±6dgt |
| General Characteristics | ||
| Power | 1.5 V Alkaline Battery (AA) x 6 | |
| Display | LCD, 70.6 × 34 mm | |
| Size | 160 × 100 × 70.5 mm | |
| Weight | 560 g | |
User Manual
Download UNI-T UT522 User Manual.

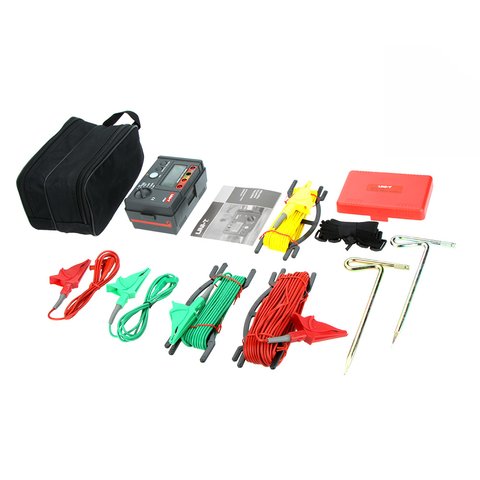

Package Contents
- UNI-T UT522 earth ground tester — 1 pc.
- Test leads (green + yellow + red) — 3 pcs / 1 set
- Test probes — 2 pcs.
- Ground pins — 2 pcs.
- Carrying bag — 1 pc.
- Shoulder strap — 1 pc.
- Battery — 6 pcs.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
