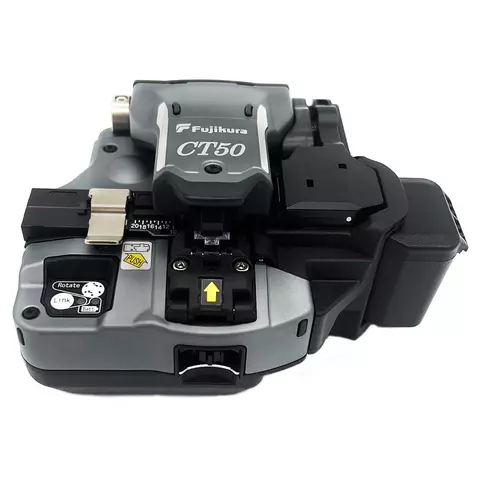

Fiber Optic Cleaver Fujikura CT-50A
id: 886268
Fiber Optic Cleaver Fujikura CT-50A
Overview
Description
Delivery
Payment
Warranty
USD 558.00
Overview
Made in Japan
1 kg
Availability in stock:
HK
Warranty: 12 months Single-fiber cleaver (optional: up to 12-fiber cleaving). One-step cleaving. Blade rotation via wireless communication. Read more
USD 558.00
Note! This item is shipped within 10 working days.
Description
Fujikura CT-50A is a high-quality optical fiber cleaver. The device performs cleaving in one step and automatically drags fiber scrap into a container.
Features
- The device cleaves up to 12 fibers (optional).
- High reliability and impact resistance.
- Automatic cleaving blade rotation via wireless communication (Bluetooth 4.1 LE).
- User replaceable fiber clamps and cleaving blade.
- Minimum actions: cleavering in one step.
- Fiber scrap container available.
- Wide lever opening angle allows easy fiber placement.
- The blade may be rotated and fixed in 16 different positions and 3 height.
Technical Specifications
| Cladding diameter | 125 μm | |
| Fiber plate | FH-XX-XXX (not included in the CT-50A kit, could be ordered separately) |
AD-50 (included in the CT-50A kit) |
| Fiber count | up to 12 pcs. | single |
| Coating diameter | 0.16 – 0.9 mm | 0.16 – 0.9 mm for drop cable 2 and 3 mm |
| Cleaving length | 10 mm | 5 – 20 mm (coating diameter < 0.25 mm) 10 – 20 mm (coating diameter > 0.25 mm) |
| Cleaving angle | typical 0,5° | |
| Blade lifetime | 60 000 operations | |
| Wireless connectivity | Bluetooth 4.1 LE | |
| Power | AAA (LR03) × 2 pcs. | |
| Operation condition | temperature: -10°C ~ 50°C | |
| humidity: 0% ~ 95% | ||
| Resistance features | shock: 76 cm | |
| rain resistance: 10 mm/hr for 10 min | ||
| dust resistance: 0.1 to 500 μm | ||
| Dimensions | 120 × 95 × 58 mm | |
| Weight | 320 g | |
User Manual
Download Fujikura CT-50A User Manual.
Package Contents
- Fiber Optic Cleaver Fujikura CT-50A — 1 pc.
- Fiber plate AD-50 — 1 pc.
- Spacer SPA-CT08-10 — 1 pc.
- Carrying case CC-37 — 1 pc.
- Hexagonal wrench HEX-01 — 1 pc.
- Battery AAA (LR03) — 3 pcs.
- User manual — 1 pcs.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
