Fiber Optic Connector Polishing Machine Fibretool HW-550C
id: 870302
Fiber Optic Connector Polishing Machine Fibretool HW-550C
Overview
Description
Delivery
Payment
Warranty
USD 1100.00
Overview
30 kg Warranty: 12 months
Corner pressure polishing machine for fiber connectors (Ø2.5 mm PC, APC / Ø12.5 mm PC, APC / MT, mini-MT). Read more
USD 1100.00
Description

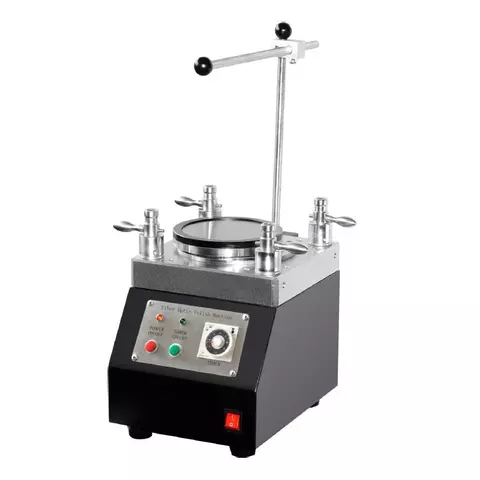

Fibretool HW-550C corner pressure polishing machine for fiber connectors.
Features
- Polishing jig is fixed with 4 points
- Polishing pressure is determined by coil spring and elastic cushion
- May be used with most types of connectors
- The polisher is made of high quality stainless steel with heat treatment
- Centering accuracy
- Quick jigs changing
Technical Specifications
| Polishing Capacity (max) | 20 connectors for FC, SC and ST / 24 connectors for MU/LC |
| Application | Ø2.5 mm PC, APC / Ø12.5 mm PC, APC / MT, mini-MT |
| Input Voltage | 100-120 V AC, 50/60 Hz or 220-240 V AC, 50/60 Hz |
| Dimensions | 230 x 255 x 230 mm |
| Weight | 27.5 kg |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
