Overview
![Fluke i1010 AC DC Current Clamp](https://i08.psgsm.net/gsm.com/p/904714/480/fluke-i1010-ac-dc-current-clamp.jpg)
0.78 kg Warranty: 12 months
A reliable current clamp with the measurement range of 1 - 1000 A displaying accurate current reading without breaking the circuit Read more
Inform of price reduction
Description

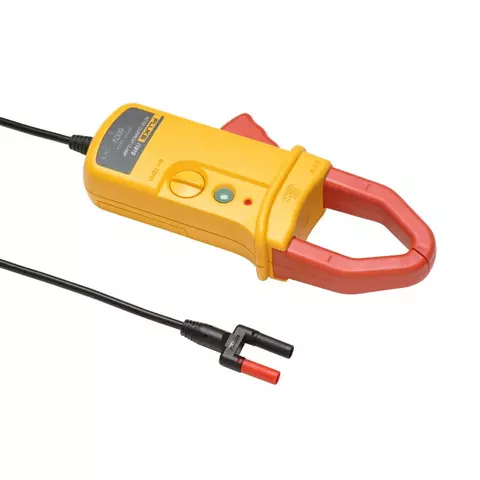

Fluke i1010 is a highly reliable sturdy AC/DC current clamp for digital multimeters that can measure DC current from 1 A to 1000 A and AC current from 1 A to 600A with a battery-powered Hall-effect probe, offering access to hard-to-reach areas.
Features
- Convenient design and construction of the clamp jaws and battery arrangement;
- Accurate current readings without breaking the circuit;
- 1 mV/Amp output for easy reading on the meter;
- Zero error adjustment;
- 4 mm shrouded double banana plug;
- CAT III 600 V safety rating;
- Compatible with the majority of Fluke multimeters;
- Yellow-and-red housing for enhanced visibility;
Technical Specifications
Measurement type | Hall sensor | ||
Nominal current range | 600 A, AC 1000 A, DC |
||
Continuous current range | 1 A - 600 A, AC 1 A - 1000 A, DC |
||
Maximum non-destructive current | 1000 A | ||
Lowest measurable current | 0.5 A | ||
Basic accuracy | 2% + 0.5 A | ||
Useable frequency | DC, 10 kHz | ||
Output level | 1 mV/A | ||
Maximum voltage | 600 V | ||
Maximum conductor diameter | 32 mm | ||
Battery type | 6LR61 9V × 1 | ||
Battery life | 9 V, 60 h | ||
Sizes | 209 × 78 × 48 mm | ||
Output cable length | 1.6 m | ||
Weight | c. 710 g |
Package Contents
- Fluke i1010 AC/DC current clamp — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
