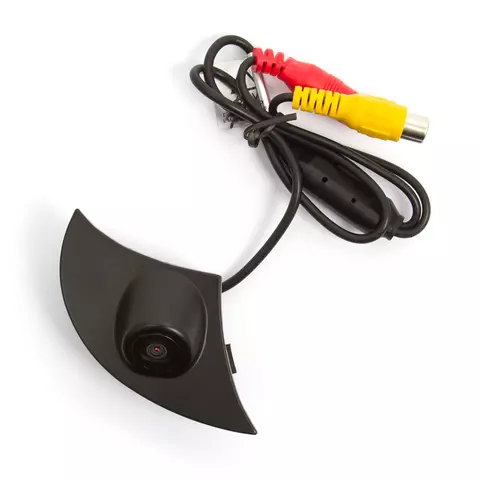

Front View Camera for Toyota

Car front view camera for Toyota with new large badge (84 mm diagonal). The camera is flush mounted into Toyota badge.

If you would like to install an aftermarket camera we suggest buying an interface, which also allow you to connect additional video sources to your car monitor.

Installing an RFCC camera control system will allow you to quickly and easily connect the front view camera and switch between images from connected cameras using OEM steering wheel buttons of your car.

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.

How to Connect a Car Camera

Toyota Front View Camera
Usage

This is reverse camera with parking guidelines by default. However, the device can also be used as front or side view camera. To do this cut one of the following cables:

• the green one, if you want to remove parking guidelines
• the white one, if you want to use it as front or side view camera (for direct image)

Toyota Front View Camera
Features

• Colourful image
• High resolution
• Waterproof case
• High or low temperature resistant
• Easy installation
• Automatic white balance

Front view camera installation in Toyota badge

Toyota Front View Camera
Technical Specifications

Toyota Front View Camera
Package Content

• Car front view camera
• Power cable
• Video cable
