Function/Arbitrary Waveform Generator SIGLENT SDG1032X
id: 868138

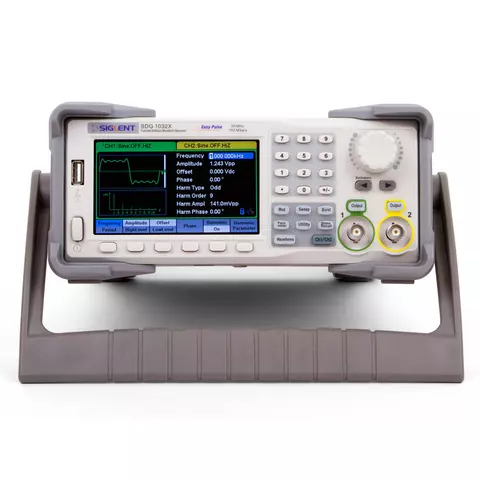

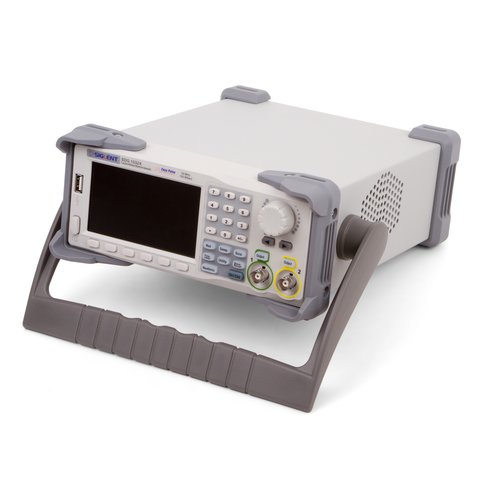

Function/Arbitrary Waveform Generator SIGLENT SDG1032X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 315.92
USD 299.00
Overview
Video
6 kg 110, 220 V Warranty: 36 months
Dual-channel function/arbitrary waveform generator with 30 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution. Read more
USD 315.92
USD 299.00
Description
SIGLENT SDG1032X is a device of SDG1000X series of dual-channel function/arbitrary waveform generators. SDG1000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.
Features
- Dual-channel, 30 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
- High-performance sampling system with 150 MSa/s sampling rate and 14-bit vertical resolution.
- Innovative TrueArb technology prevents the occurrence of noise and interference.
- Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
- 30 MHz square wave generator with jitter of less than 300 ps + 0.000005
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PWM, PSK.
- Sweep and Burst functions.
- High precision Frequency Counter.

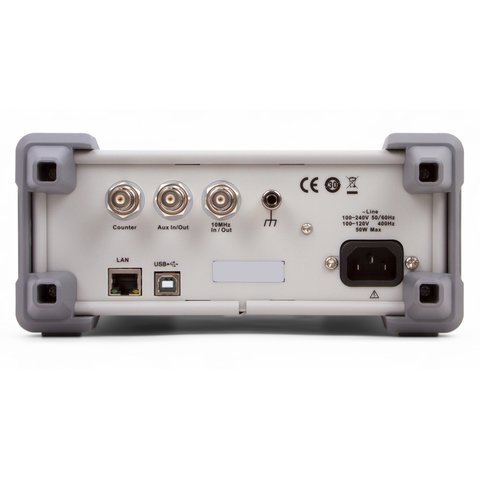

- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
- 4.3” touch screen display for convenient control.
Technical Specifications
| Maximum bandwidth | 30 MHz |
| Number of channels | 2 |
| Sampling rate | 150 MSa/s |
| Wavelength | 14 Kpts |
| Frequency resolution | 1 μHz |
| Vertical resolution | 14 bit |
| Interfaces | USB Host, USB Device (USBTMC), LAN (VXI-11) |
| Dimensions, W×H×D | 260.3 mm × 107.2 mm × 295.7 mm |
| Weight | 3.43 kg |
Video

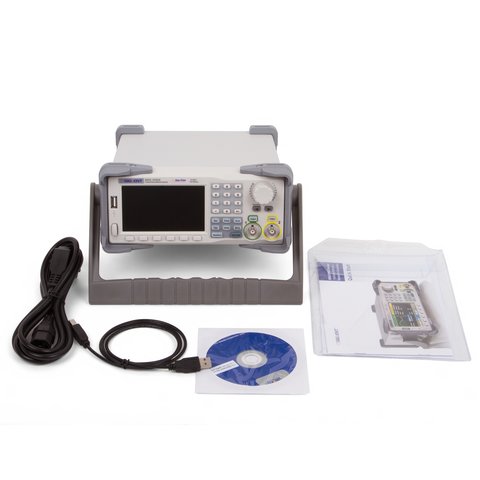

Package Contents
- Siglent SDG1032X Function/Arbitrary Waveform Generator — 1 pc.
- Power cable — 1 pc.
- USB cable — 1 pc.
- Warranty — 1 pc.
- Software CD — 1 pc.
- Quick start guide — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
