Dual-channel function/arbitary waveform generator with 80 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock:
HK
ID: 862792 6 kg 110, 220

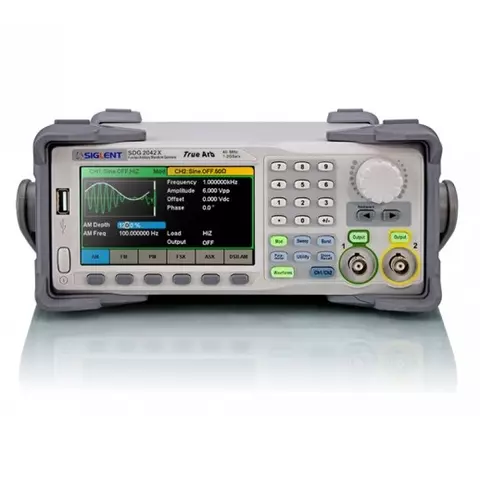

Function/Arbitrary Waveform Generator SIGLENT SDG2042X
id: 862791
Function/Arbitrary Waveform Generator SIGLENT SDG2042X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 424.15
Overview
Video
7.5 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months Dual-channel function/arbitary waveform generator with 40 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution. Read more
USD 424.15
You may also like
Description
SIGLENT SDG2042X is a device of SDG2000X series of dual-channel function/arbitrary waveform generators. SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.
Features
- Dual-channel, 40 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
- High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution.
- Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 75 MSa/s.
- Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
- Plenty of analog and digital modulation types: AM、DSB-AM、FM、PM、FSK、ASK and PWM.
- Sweep and Burst functions.
- High precision Frequency Counter.
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
- 4.3” touch screen display for easier operation.
Technical Specifications
| Model | SDG2042X | SDG2082X | SDG2122X |
| Bandwidth | 40 MHz | 80 MHz | 120 MHz |
| Output channels | 2 | ||
| Sampling rate | 1.2 GSa/s (4X Interpolation) | ||
| Wave length | CH1: 16 Kpts, CH2: 512 Kpts | ||
| Frequency resolution | 1μHz | ||
| Vertical resolution | 16 bit | ||
| Standard interfaces | USB Host, USB Device (USBTMC), LAN (VXI-11) | ||
| Dimensions, W×H×D | 260.3mm×107.2mm×295.7mm | ||
| Weight | 3.43 kg | ||
Video
Package Contents
- Siglent SDG2042X Function/Arbitrary Waveform Generator — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Guarantee Card — 1 pc.
- Software CD — 1 pc.
- Quick start guide — 1 pc.
- BNC cable — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
