Function/Arbitrary Waveform Generator UNI-T UTG1022X
id: 913697
Function/Arbitrary Waveform Generator UNI-T UTG1022X
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview

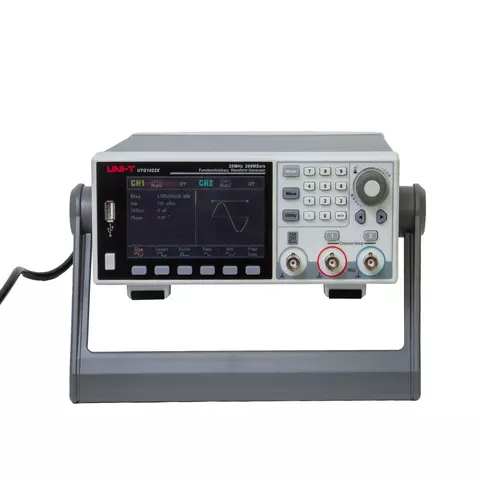

![Function Arbitrary Waveform Generator UNI T UTG1022X](https://i28.psgsm.net/gsm.com/p/913697/480/function-arbitrary-waveform-generator-uni-t-utg1022x.jpg)
6 kg Warranty: 24 months
Dual-channel generator with a 200 MSa/s sampling rate, 20 MHz maximum output frequency, 16-bit vertical resolution, and a 4.3-inch TFT LCD. Read more
Inform of price reduction
Description
UNI-T UTG1022X is an economical, high-performance, and multi-functional function/arbitrary waveform generator. It can generate accurate, stable, clean, and low-distortion output signals. With convenient operation, superior technical indicators, and a humanized graphic display, it is a multipurpose device that meets the needs of learning, testing, and production.
Features
- Two channels with a maximum frequency output of 20 MHz and a maximum output amplitude of 20 Vpp
- 200 MSa/s sampling rate and 16-bit vertical resolution
- Square wave with a maximum frequency of 20 MHz
- Low jitter
- Multiple analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM
- Support for sweep frequency and pulse string output
- Arbitrary waves can be generated using the upper software on the computer
- 7-bit hard frequency meter
- Built-in 200 arbitrary waves
- Standard USB Host and USB Device
- 4.3-inch high-resolution TFT LCD
Technical Specifications
Channel | Dual channel |
Sampling rate | 200 MSa/s |
Max. output frequency | 20 MHz |
Vertical resolution | 16 bit |
Waveform characteristic | 6 standard waveforms, 200 built-in arbitrary waveforms |
Waveform | Sine, Square, Ramp, Pulse, Noise, DC, Arb, AM, FM, PM, ASK, FSK, PSK, PWM, frequency sweep, burst |
Working modes | Output gating, Continuous, Modulation, Frequency Sweep, Burst |
Display | 4,3" TFT LCD, WVGA (480×272) |
Supply voltage | 100~240 VACrms (fluctuations:±10%), 50 Hz/60 Hz 100~120 VACrms (fluctuations:±10%), 400 Hz |
Power consumption | <20 W |
Fuse | 2 A, Class T,250 V |
Dimensions (W×H×D) | 215 mm × 103 mm × 316 mm |
Weight | 2.2 kg |
User Manual
Download UNI-T UTG1022X user manual.
Datasheet
Download UNI-T UTG1022X datasheet.

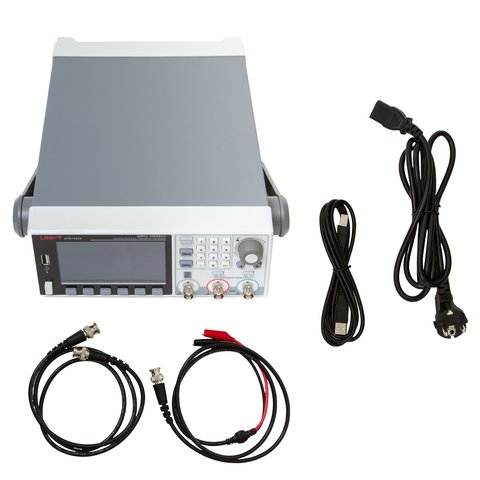

Package Contents
- Function/Arbitrary Waveform Generator — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- BNC-BNC Cable — 1 pc.
- BNC-Red&Black Alligator Clip Cable — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
