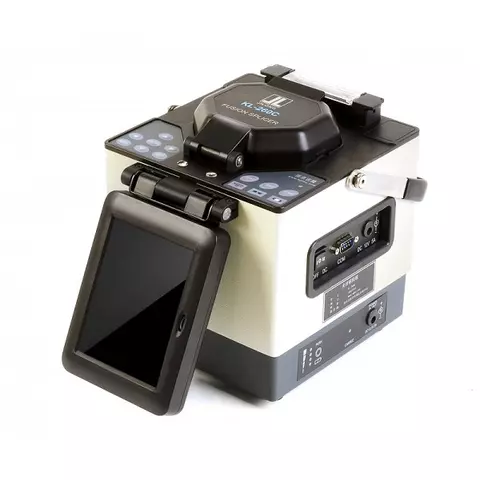

Fusion Splicer Jilong KL-260C
id: 832711
Fusion Splicer Jilong KL-260C
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
11 kg 110, 220 V Warranty: 12 months
Fusion splicer, which can work with any type of fiber-optic communication lines. Reliable, simple to operate, automatic. Read more
Discontinued
Description
Jilong KL-260C is a very reliable, simple to operate, automatic fusion splicer, which can work with any type of fiber-optic communication lines. This offer provides superior quality at an affordable price.
Jilong KL-260C Fusion Splicer Features
- Large multiple and visible fiber core
- Both X and Y axis display
- Built in backlight
- Automatic end-face of fiber check
- Automatic splicing loss calculation
- Automatic fusion program selection
- Small bulk and light weight
Jilong KL-260C Fusion Splicer Technical Specifications
| Applicable fibers |
|
| Coating diameter | 100 - 1000 µm |
| Cleave length | 8-16 mm (standard) |
| Average splice loss |
|
| Return loss | ≥ 60 dB |
| Average splice time | typ. 10 seconds |
| Protection sleeve length | 40 mm, 60 mm |
| Battery / charger | AC: 100-220 V, 50/60 Hz, 30 W |
| DC adaptor | 10-14 V 25 W, optional multipurpose external battery |
| Types of splicing mode | Auto & Manual |
| Splicing programs | SM, MM, DS, NZ-DS |
| Heater | Optional outer heater (can heat 4 protecting sleeves at same time) |
| Storage of splice results | 5000 splice results in the internal memory |
| Interface | RS232 interface |
| Display | 5 inch LCD |
| Operation conditions | -10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 4000 m (altitude) |
| Storage environment | -40 ~ 60 °C (temperature), 0 ~ 95% (humidity) |
| Dimensions | 172 × 180 × 145 mm |
| Weight | 4.6 kg |
Jilong KL-260C Fusion Splicer Packaging
- Jilong KL-260C fusion splicer (1 pc.)
- Power adaptor (1 pc.)
- AC power cord (1 pc.)
- Battery (1 pc.)
- Precision fiber cleaver (1 pc.)
- Spare electrode (1 pair)
- Carrying case (1 pc.)
- Instruction manual (1 pc.)
- Tray (1 pc.)
- Clauss CFS-2 stripper (1 pc.)
- Carrying case shoulder strap (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
