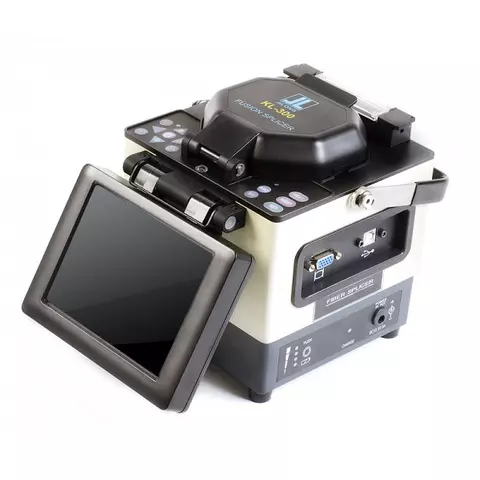

Fusion Splicer Jilong KL-300

Name: Fusion Splicer Jilong KL-300
Brand: Jilong
SKU: 832710
Price: 2600.00 USD
Availability: OutOfStock

id: 832710

Overview

Description

Delivery

Payment

Warranty

Discontinued

Overview

7 kg 110, 220 V Warranty: 12 months

Latest model in the Nanjing Jilong line of fusion splicers, which can work with any type of fiber-optic communication lines. More reliable, lighter, and simple to operate. Read more

Discontinued

Impossible to estimate the shipping cost

Description

Jilong KL-300 is the latest model in the Nanjing Jilong line of fusion splicers, which can work with any type of fiber-optic communication lines. This Jilong KL-300 fusion splicer have an automatic focus and advanced automatic core alignment (PAS) functions.

Jilong KL-300 Fusion Splicer Features

Core to core alignment by PAS technology (PAS: Profile Alignment System)
Both X and Y axis display
5.6 inch color LCD monitor
Automatic end-face of fiber check
Automatic splicing loss calculation
Automatic fusion program selection
USB and VGA interface
Software updates via USB interface

Jilong KL-260C Fusion Splicer Technical Specifications

Applicable fibers	SM (ITU-T G.652) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655)
Coating diameter	100 - 1000 µm
Cleave length	8 ~ 16 mm (coating diameter: 250 µm）
Average splice loss	SM: typ. 0.02 dB MM: typ. 0.01 dB DS: typ. 0.04 dB NZDS: typ. 0.04 dB
Return loss	≥ 60 dB
Average splice time	typ. 9 seconds
Protection sleeve length	40 mm, 60 mm
Battery / charger	AC: 100-220 V, 50/60 Hz, 30 W / inner Li-battery (8000 mAh)
Tube heating time	typ. 30 sec
Splicing programs	SM, MM, DS, NZDS
Storage of splice results	4000 splice results in the internal memory
Interface	USB 1.1 and VGA
Display	5.6 inch LCD
Operation conditions	-10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment	-40 ~ 60 °C (temperature), 0 ~ 95% (humidity)
Dimensions	150 × 150 × 150 mm
Weight	3.2 kg

Jilong KL-300 Fusion Splicer Packaging

Jilong KL-300 fusion splicer (1 pc.)
Power adaptor (1 pc.)
AC power cord (1 pc.)
Battery (1 pc.)
Precision fiber cleaver (1 pc.)
Spare electrode (1 pair)
Carrying case (1 pc.)
Instruction manual (1 pc.)
Tray (1 pc.)
Clauss CFS-2 stripper (1 pc.)
Shoulder strap for carrying case (1 pc.)

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
