Description

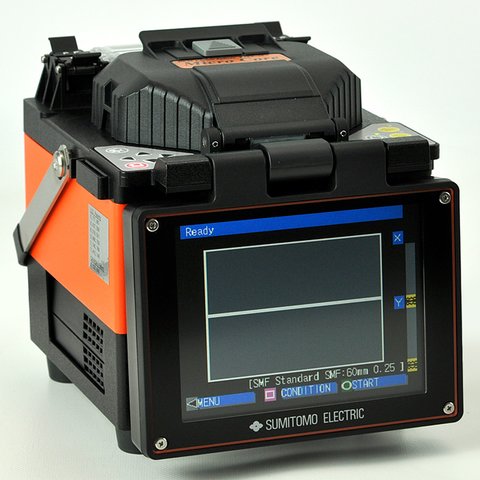

Sumitomo T-39 FastCat Core Alignment Fusion splicer is the industry's first splicer to feature a Dual-Automatic Heater System. Auto Start Heater and Auto Start Splice functions make the Sumitomo T-39 FastCat the fastest fusion splicer available today.
8 - 16 mm (under 250 μm coated fiber),
16 mm (over 250 μm coated fiber)
Typical Splice Loss, Identical Fibers
SM: 0.02 dB
MM:0.01 dB
NZDS: 0.04 dB
Number of Fiber Profiles
48 customizable
Number of Pre-Installed Heater Profiles
20 customizable
Internal Splice Data Storage
2000
Monitor Position
Multiple position monitor
Interface
USB port for PC interface
RCA jack for external monitor
DC input for car battery
Dual Independent Heaters
25 seconds 40 mm sleeve
30 seconds 60 mm sleeve
Typical Splice Time
9 seconds splice cycle time
Language Selections
16
Return Loss
<70 dB
Attenuation Splicing
Up to 15 dB in increments of 0.01 db
Loss Estimation Process
High-resolution direct core monitoring (HDCM)
Image Display
Dual or single fiber imaging X/Y
Physical Characteristics
Size
150 x 150 x 150 mm
Weight
2.8 kg
Power Requirement
Input: 100 - 240 V AC; 50/60 Hz, 12 V DC
Display
5.6-inch LCD
Wind Protection
30 mph (15 m/s)
Battery Operation
Standard: 100 splices and heater cycles
Extended: 200 splices and heater cycles
Sumitomo T-39 Fusion Splicer Packaging
Sumitomo T-39 fusion splicer (1 pc.)
BU-66S standard battery (1 pc.)
BU-66XL XL battery (1 pc.)
BCC-66 charging cable (1 pc.)
ER-10 spare electrodes (1 pair)
FC-6S precision fiber optic cleaver (1 pc.)
PC-AC2 AC power cord (1 pc.)
VGB-003-CR V-groove brush (1 pc.)
Operation manual (1 pc.)
Carrying case (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
