Hot Air Soldering Station AOYUE 868
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 89.00
Overview
3.7 kg 220 V Warranty: 12 months
Thin hot air gun handle for precise SMD soldering. Antistatic performance. Automatic cooling. PTC heating element. Read more
USD 89.00
Buy wholesale and save
Description

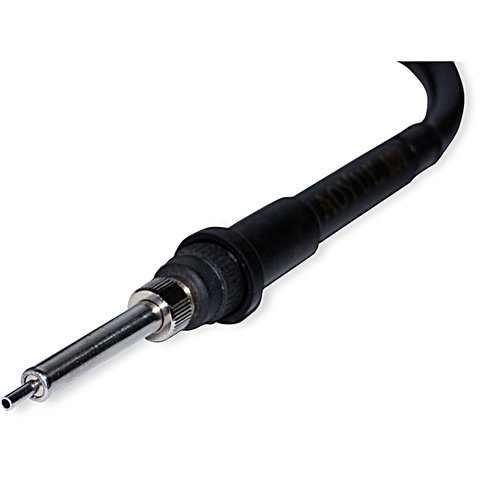

Hot Air Soldering Station AOYUE-868 is perfect for SMD precise soldering. Special hot air gun with thin nozzle made for complex combination contactfree soldering and other high-precision working. Package includes 3 nozzles for hot air gun. Accessible design of hot air gun handle. PTC (positive temperature coefficient) advantages – fast heating and durability. Automatic cold air for cooling of heating element after usage. The best to work with integral IC.
Features
- Temperature and airflow analog control.
- Reliable diaphragm pump.
- Automatic cool mode (after shutdown) protects heating element.
- Antistatic performance enables device working with static sensitive components.
- Soldering station is packed into cardboard box with foam protective frame.
- Soft rubber legs located on the bottom panel provide equipment steadiness on worktable.
- There is 5 A fuse on the back panel of the main unit.
Technical Specifications
| Temperature range | 100–480 °C |
| Temperature adjustment | Analog, smooth |
| Airflow adjustment | Analog, smooth |
| Power consumption | 120W (max.) |
| Operating voltage | 220 V |
| Airflow | 23 l/min (max.) |
| Pump | 868 (diaphragm) |
| Dimensions | 245(L) × 188(W) ×128(H) mm |
| Nozzles | S, M, L |
| Heating element | 10092 (2-pins, with nichrome concertina wire) |
| Nozzle diameter | 2,5 mm |
| Airflow | Linear |
Package includes
- Hot air soldering station AOYUE - 868 – 1pc.
- Hot air gun holder – 1 pc.
- Power cable, 1 m – 1 pc.
- Nozzles - 3 pcs.
- Manual – 1 pc.
- Box with foam protective frame – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
